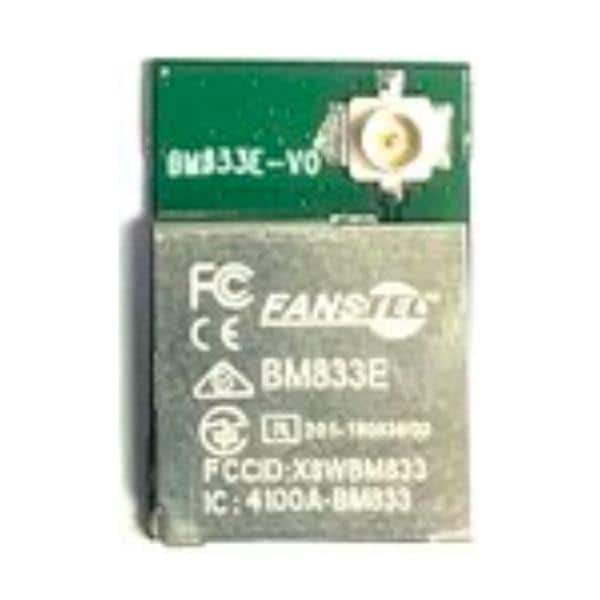

Fanstel BM833E ມູດູນ Bluetooth BLE 5.1 nRF52833 DF U.FL Connector

Core: ARM Cortex M4F

Class: Bluetooth Low Energy (BLE)

Antenna: U.FL

Data Rate: 2 Mb/s

Frequency: 2.4 GHz

Shielding: Shielded

Dimensions: 10.2 mm x 15 mm x 1.9 mm

Sensitivity: - 97 dBm

Unit Weight: 10.117 g

Output Power: 8 dBm

Interface Type: I2C, I2S, SPI, UART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Receiver Sensitivity: - 97 dBm

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.7 V

Antenna Connector Type: u.FL

Operating Supply Voltage: 1.7 V to 5.5 V

Supply Current Receiving: 4.6 mA

Supply Current Transmitting: 4.8 mA

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.1

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
