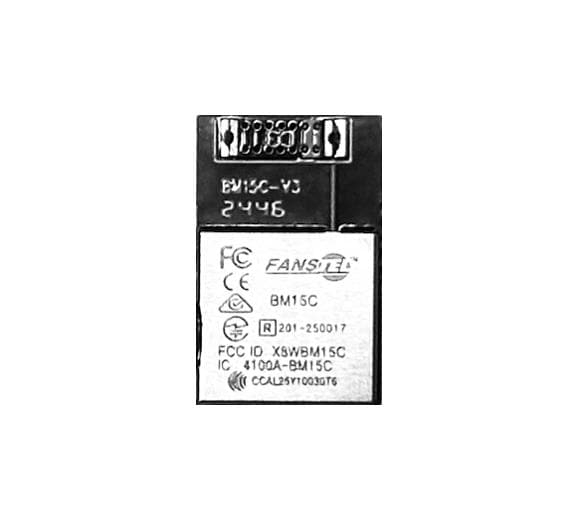

Fanstel BM15C ມູດູນ Bluetooth nRF54L15 BLE 6.0 ມູດູນທີ່ມີແອນເຕນນາຊິບ

Core: ARM Cortex-M33

Width: 15.8 mm

Height: 2 mm

Length: 10 mm

Antenna: Chip

Protocol: BLE, Bluetooth 6.0

Data Rate: 250 kb/s

Shielding: Shielded

Memory Size: 256 kB

Output Power: 8 dBm

Interface Type: I2C, SPI, UART, USB

Mounting Style: SMD/SMT

Protocol - Sub GHz: NFC

Receiver Sensitivity: - 98 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.7 V

Operating Supply Voltage: 1.7 V to 3.6 V

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
