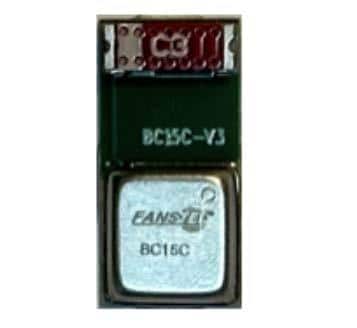

Fanstel BC15C ມູດູນ Bluetooth

Core: ARM Cortex M33

Width: 6 mm

Height: 1.85 mm

Length: 12.4 mm

Antenna: NFC

Data Rate: 125 kb/s, 250 kb/s, 1 Mb/s, 2 Mb/s, 4 Mb/s

Frequency: 2.4 GHz

Dimensions: 12.4 mm x 6 mm

Memory Size: 1.524 MB

Output Power: 3 dBm

Interface Type: I2C, SPI, UART

Mounting Style: SMD/SMT

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.7 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
