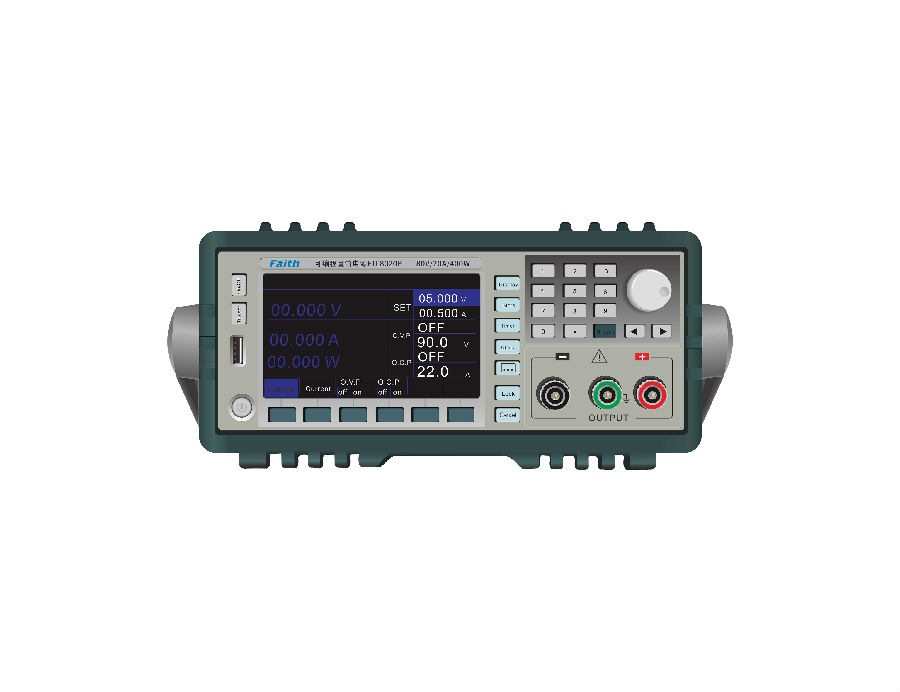

Specification: 80V/20A/400W
Voltage resolution: 1 mV
Current resolution: 1mA
Redundant output range: 80V/20A/400W
Source effect: ≤0.01%+3mV
Load effect: ≤0.01%+3mV (I≤3A) / ≤0.02%+5mV (I>3A)
Recovery time: ≤100us (50% load change, minimum load 0.5A)
Ripple nosie: ≤1mV rms (I≤3A) (5Hz~1MHz) / ≤2mV rms (I>3A) (5Hz~1MHz)
Temperature coefficient: ≤100ppm/ ℃
Design accuracy: ±(0.03%+10mV) (25±5 ℃)
CC mode
Source effect: ≤0.1%+3mA
Load effect: ≤0.1%+3mA (I≤3A) / ≤0.1%+5mA (I>3A)
Ripple noise: ≤3mA rms (I≤3A) / ≤6mA rms (I>3A)
Design accuracy: ±(0.1%+0.1% F.S.)(25±5 ℃)
Readback
Voltage: 5digits display
Current: 5digits display
Voltage accuracy: ±(0.02%of reading+5mV) (25±5℃)
Current accuracy: ±(0.1%of reading+0.1% of F.S.) (25±5 ℃)
Other features
Protection: OCP, OVP, OPP, OTP, reverse polarity protection, etc.
Remote sense: Max compensate voltage 5%F.S.
Battery charge: Support
Keypad lock: Support
Communication: Standard RS232, support SCPI (optional analog control interface, RS485, LAN, MODBUS)
Storage & recall: 100 Groups
Insulation: ≥ 20MΩ/500VDC
Input: AC 110V/220V±10%, 50/60Hz
Size: 352(D)×215(W)×89(H)mm
Weight: 6.8~9.8kg
