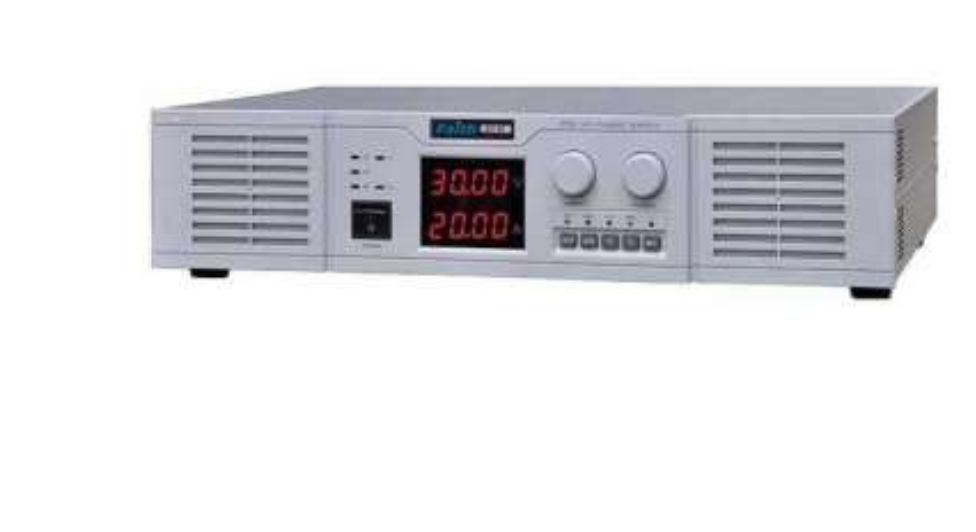

Voltage: 30V
Current: 150A
Power: 4500W
AC input: Single-phase 220V±10%
50Hz/60Hz
Output voltage 0-30V
Output current 0-150A
Output power: 4500W
Power supply stability ≦ 0.3%+10mV
Load stability ≦ 0.5%+30mV
Ripple ≤0.5%+10mV (rms)
Voltage value display
4-digit table Accuracy: ±1% +1 word (10%-100% rated value)
Display format 0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V
Current value display
4-digit table Accuracy: ±1% +1 word (10%-100% rated value)
Display format 0.000A-9.999A; 0.00A-99.99A; 0.0A-999.9A
Time controller
T1 time setting: 1S—9999S; 1M-9999M; 1H-9999H
T2 time setting: 1S—9999S; 1M-9999M; 1H-9999H
Number of cycle outputs: 1-9999 times; infinite cycle
Remote adjustment Voltage adjustment: DC/0-5V; Current adjustment: DC/0-5V
Remote display Voltage display: DC/0-5V; Current display: DC/0-5V
Output overvoltage protection Built-in O.V.P protection, protection value is rated value + 5%
Output overcurrent protection Overload, short circuit constant current output
Overtemperature protection Built-in O.T.P protection, protection value is 85℃±5% (heat sink temperature)
Voltage setting Encoder knob
Current setting Encoder knob
Output polarity Output positive (+) and negative (-) can be grounded arbitrarily
Cooling method Forced air cooling
Operating environment Designed for indoor use, temperature: 0℃～40℃; humidity: 10%～85% RH
Storage environment Temperature: -20℃～70℃; humidity: 10%～90% RH
