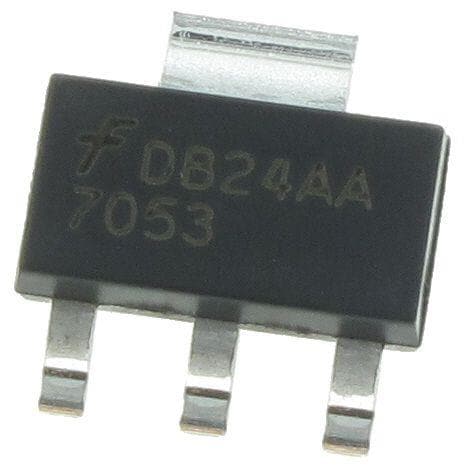

Fairchild NZT7053 Darlington Transistors NPN Transistor Darlington

Width: 3.56 mm

Height: 1.6 mm

Length: 6.5 mm

Unit Weight: 112 mg

Configuration: Single Dual Collector

Mounting Style: SMD/SMT

Transistor Polarity: NPN

Emitter- Base Voltage VEBO: 12 V

Collector- Base Voltage VCBO: 100 V

Maximum DC Collector Current: 1.5 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

DC Collector/Base Gain hfe Min: 1000

Maximum Collector Cut-off Current: 100 nA

Collector- Emitter Voltage VCEO Max: 100 V
