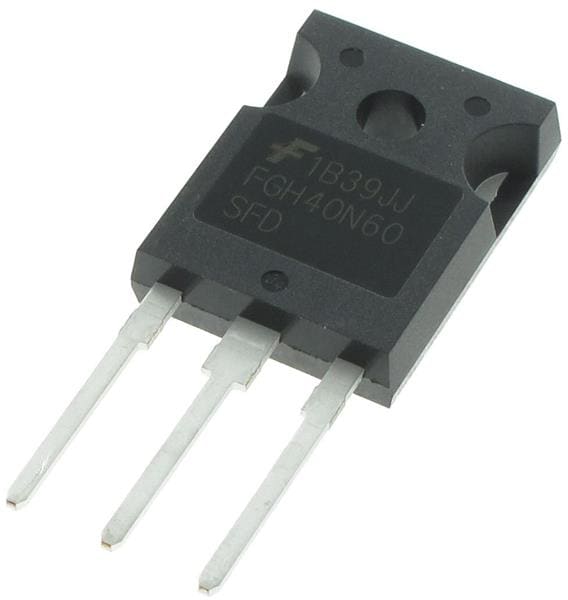

Fairchild FGH40N60SFDTU IGBT Transistors 600V 40A ຟິວດສຕອບ

Width: 4.82 mm

Height: 20.82 mm

Length: 15.87 mm

Technology: Si

Unit Weight: 6.390 g

REACH - SVHC: Details

Configuration: Single

Mounting Style: Through Hole

Pd - Power Dissipation: 290 W

Maximum Gate Emitter Voltage: - 20 V, 20 V

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

Collector- Emitter Voltage VCEO Max: 600 V

Continuous Collector Current Ic Max: 80 A

Collector-Emitter Saturation Voltage: 2.3 V

Continuous Collector Current at 25 C: 80 A
