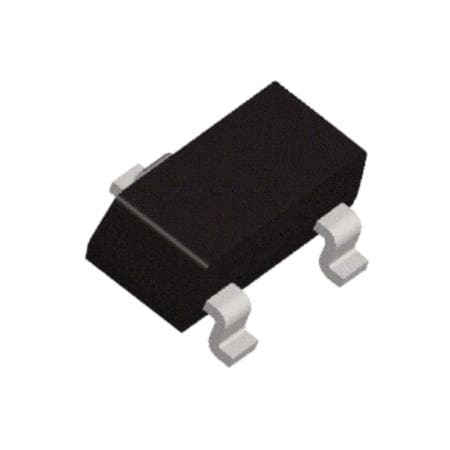

Fairchild FDN327N MOSFET N-Ch PowerTrench 1.8 VGS Spec

Width: 1.4 mm

Height: 1.12 mm

Length: 2.9 mm

Fall Time: 6.5 ns

Rise Time: 6.5 ns

Technology: Si

Unit Weight: 30 mg

Channel Mode: Enhancement

Configuration: Single

Mounting Style: SMD/SMT

Transistor Type: 1 N-Channel

Qg - Gate Charge: 6.3 nC

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Pd - Power Dissipation: 500 mW

Vgs - Gate-Source Voltage: - 8 V, + 8 V

Typical Turn-On Delay Time: 6 ns

Typical Turn-Off Delay Time: 14 ns

Id - Continuous Drain Current: 2 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

Forward Transconductance - Min: 11 S

Rds On - Drain-Source Resistance: 40 mOhms

Vds - Drain-Source Breakdown Voltage: 20 V

Vgs th - Gate-Source Threshold Voltage: 400 mV
