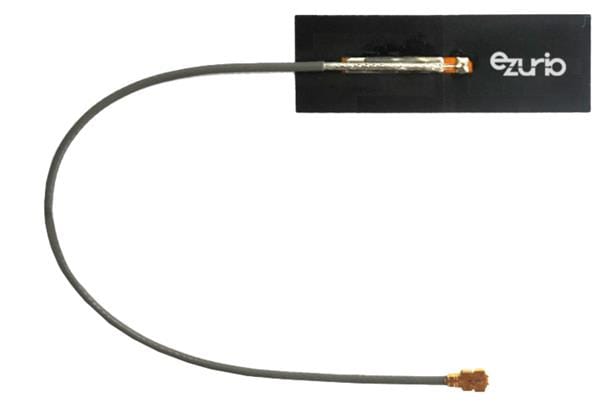

Ezurio EMF2471A3S-10MHF1 ອະນຕີນາອັດຕະໂນມັດ Passive Antenna ANT, WiFi 6E, 7GHz, Mini NanoBlade Flex, 100mm, MHF1

Gain: 2.4 dBi, 4.4 dBi, 5.2 dBi

VSWR: 2:1

Style: I-Bar Flex

Width: 12 mm

Height: 0.1 mm

Length: 36 mm

Impedance: 50 Ohms

Cable Type: 100 mm RF1.13

Application: Home Automation Equipment, Medical Devices, Smart Grid Applications

Unit Weight: 600 mg

Cable Length: 100 mm

Polarization: Linear - Vertical

Power Rating: 5 W

Mounting Style: Adhesive Mount

Electrical Type: Embedded

Number of Bands: 3 Band

Center Frequency: 2.45 GHz, 5.45 GHz, 6.562 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 7.125 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Antenna Connector Type: IPEX MHF1

Protocol - WiFi - 802.11: WiFi 6E, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
