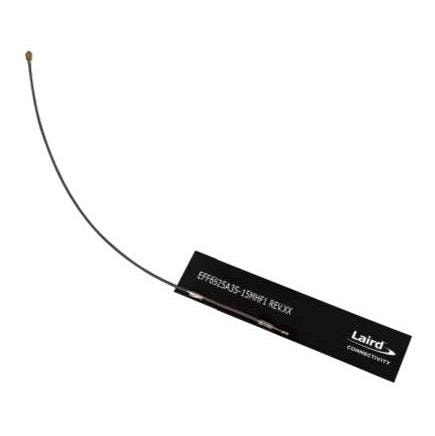

Ezurio EFF6925A3S-15MHF1 ແນວຮັບສະສົມສະຕິກ EMBED,DIPOLE,MHF1 TIGER,ຕິດຕັ້ງດ້ວຍການກວດສອບ

Gain: 1.9 dBi, 3.7 dBi

VSWR: 2.5:1

Style: I-Bar Flex

Width: 20 mm

Height: 0.16 mm

Length: 90 mm

Impedance: 50 Ohms

Cable Type: 150 mm RF1.13

Unit Weight: 1 g

Cable Length: 15 cm

Polarization: Linear

Power Rating: 5 W

Mounting Style: Adhesive Mount

Electrical Type: Embedded Dipole

Number of Bands: 2 Band

Center Frequency: 786 MHz, 2.105 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 2.5 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT

Antenna Connector Type: IPEX MHF1

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
