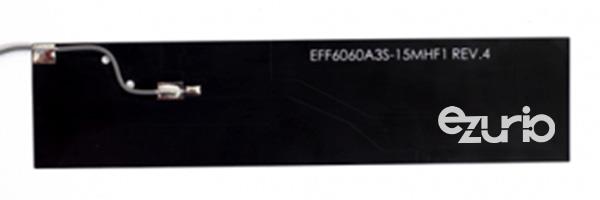

Ezurio EFF6060A3S-20MHF1 ອະນຕີນາພາສິບ EMBED,DIPOLE,MHF1 200MM,ADH,REVIE600

Gain: 0.7 dBi, 2.3 dBi, 2.4 dBi, 3 dBi, 2.9 dBi, 3.6 dBi, 3.2 dBi, 2.6 dBi, 2.7 dBi, 3 dBi, 3.7 dBi, 5.3 dBi

VSWR: 2.5:1

Style: I-Bar Flex

Width: 30.4 mm

Height: 0.3 mm

Length: 130.4 mm

Impedance: 50 Ohms

Cable Type: 150 mm RF1.13

Application: CAT M, CAT M1, CBRS, GNSS Bands, LTE-M, NB-IoT, 5G NR Devices

Unit Weight: 2 g

Cable Length: 200 mm

Polarization: Linear - Vertical

Power Rating: 5 W

Mounting Style: Adhesive Mount

Electrical Type: Embedded Dipole

Number of Bands: 12 Band

Center Frequency: 649 MHz, 752 MHz, 850 MHz, 920 MHz, 1465 MHz, 1580 MHz, 1785 MHz, 1920 MHz, 2045 MHz, 2500 MHz, 3750 MHz, 5450 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 6 GHz

Minimum Frequency: 600 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: IPEX MHF41

Protocol - GPS, GLONASS: GNSS

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 5G/5G NR, Cellular (NBIoT, LTE), CBRS

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
