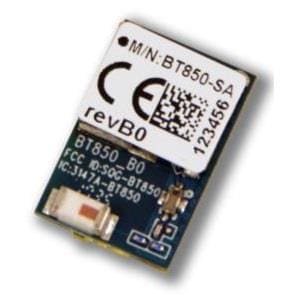

Ezurio BT850-SA-T/R ມູດູນ Bluetooth BTv4.2 Dual Mode USB HCI Module (Integra

Class: Class 1

Width: 8.5 mm

Height: 2.2 mm

Length: 13 mm

Antenna: External w/FFC/FPC Connector

Protocol: Bluetooth 4.2

Data Rate: 3 Mb/s

Frequency: 2.44 GHz

Sensitivity: - 94 dBm

Unit Weight: 1 g

Output Power: 8 dBm

Interface Type: 2-Wire, GPIO, I2S, PCM, UART

Frequency Range: 2.402 GHz to 2.48 GHz

Receiver Sensitivity: - 94 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 3 V

Antenna Connector Type: FFC/FPC Connector

Operating Supply Voltage: 3 V to 3.6 V

Supply Current Transmitting: 55 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
