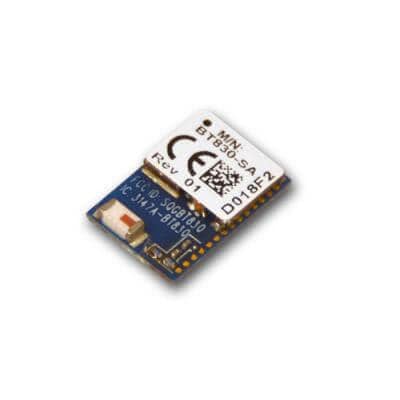

Ezurio BT830-SA-01-T/R ມູດູນ Bluetooth BTv4.0 ໂມດຄູ່ UAR T HCI, Module

Class: Class 1

Width: 8.5 mm

Height: 1.6 mm

Length: 13 mm

Protocol: Bluetooth 4.0

Data Rate: 3 Mb/s

Frequency: 2.44 GHz

Sensitivity: - 89 dBm

Unit Weight: 850 g

Output Power: 7 dBm

Interface Type: UAR, GPIO, I2S, PCM

Mounting Style: SMD/SMT

Frequency Range: 2.402 GHz to 2.48 GHz

Moisture Sensitive: Yes

Modulation Technique: PCM

Receiver Sensitivity: - 89 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.75 V

Operating Supply Voltage: 1.8 V, 3.3 V

Supply Current Receiving: 11.5 mA

Supply Current Transmitting: 7.1 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
