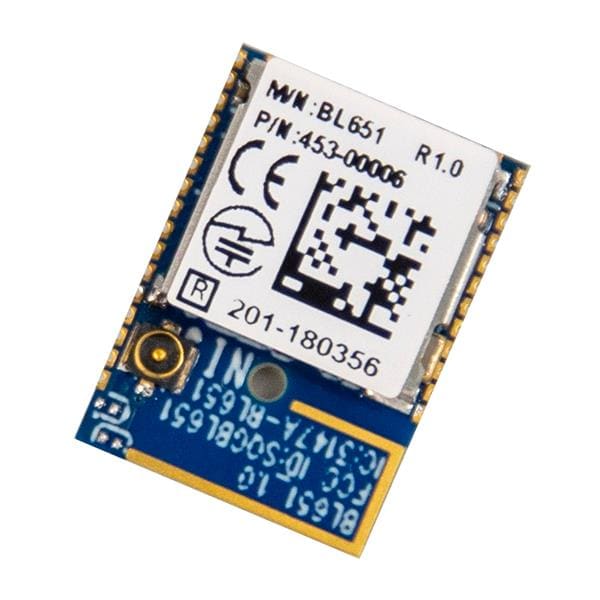

Ezurio 453-00006C ອາເດັດເຕີ USB BL651 Series - ໂມດູນ Bluetooth v5, ສາຍອະນເທນາພິເສດ (Nordic nRF52810) - ຕັດເທັບ

Class: Bluetooth Low Energy (BLE)

Range: 100 m

Antenna: Chip

Data Rate: 2 Mb/s

Frequency: 2.4 GHz

Dimensions: 14 mm x 10 mm x 2.1 mm

Sensitivity: - 96 dBm

Unit Weight: 420 mg

Output Power: 4 dBm

Interface Type: GPIO, I2C, SPI, UART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Receiver Sensitivity: - 96 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.7 V

Antenna Connector Type: External

Operating Supply Voltage: 1.7 V to 3.6 V

Supply Current Receiving: 4.6 mA

Supply Current Transmitting: 7 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.0
