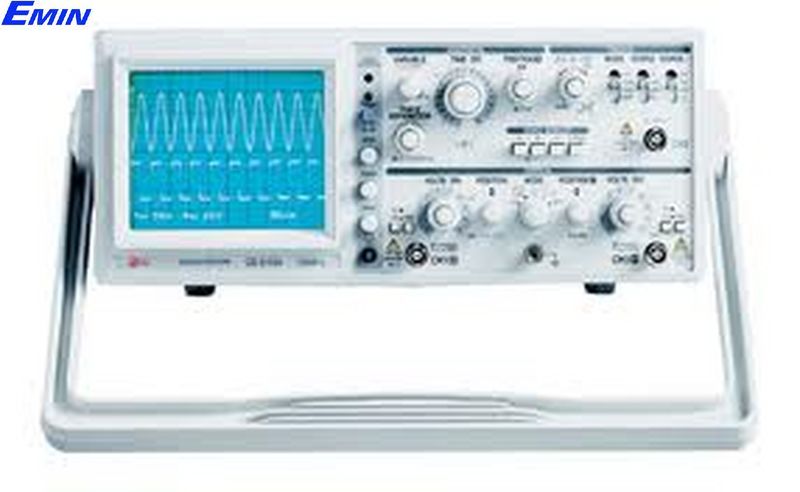

100MHz 2CH dual trace
6 inch large size high luminance CRT
Wider than specified frequency response
Signal delay with delay line useful for observation of
signal start point
ALT. Triggering function(Vert Mode)
Auto focusing according to the change of intensity
Drift compensation circuit employed in vertical amplifier
for low drift
Jitterless and high trigger sensitivity
TV sync. separation and hold-off circuit useful in video
signal observation
Maximum input Voltage: 250V pp
Power suply: 220VAC
Weight 8.5 Kgs
Dimension: 320mm(W) 140mm(H) 430mm(L)
Include: Operator’s manual1, Spare fuse 2 Power cord 1, probe
Manufacture : EZ - Korea
Origin : Korea
| Performance Characteristics of the OS-5100 | |
| Form Factor | Benchtop |
| Bandwidth | 100 MHz |
| Rise time | 3.5 ns |
| Number of Channels | 2 ch |
| Min. Vertical Sensitivity | 2 mV/div |
| Maximum Vertical Sensitivity | 5 V/div |
| Vertical(or Deflection Factor) Accuracy | 3 % |
| Input Coupling | AC,DC,GND |
| Input Impedance | 1 MOhm |
| Main time base - lowest | 100 ns/div |
| Main time base - highest | 200 ms/div |
| B Sweep Time Base (low) | 100 ns/div |
| B Sweep Time Base (high) | 0.01 ms/div |
| Time base Magnification factor (X) | x10 |
| Timebase accuracy | 3 % |
| Trigger Source | External,Internal |
| Trigger Modes | Auto,Normal,TV |
| Trigger Sensitivity | 0.5 mV |
| Display Type | CRT Monochrome |
| Display Size | 15.24 cm |
| Programmability/Connectivity of the OS-5100 | |
| User Interface | Proprietary |
| OS-5100 Power Requirements | |
| Input Power | USA (110V/60Hz) |
| OS-5100 Physical Dimensions | |
| Width | 320 mm(12.59 in) |
| Height | 140 mm(5.51 in) |
| Length | 430 mm(16.92 in) |
| Weight | 8.5 kg(18.73 lb) |
