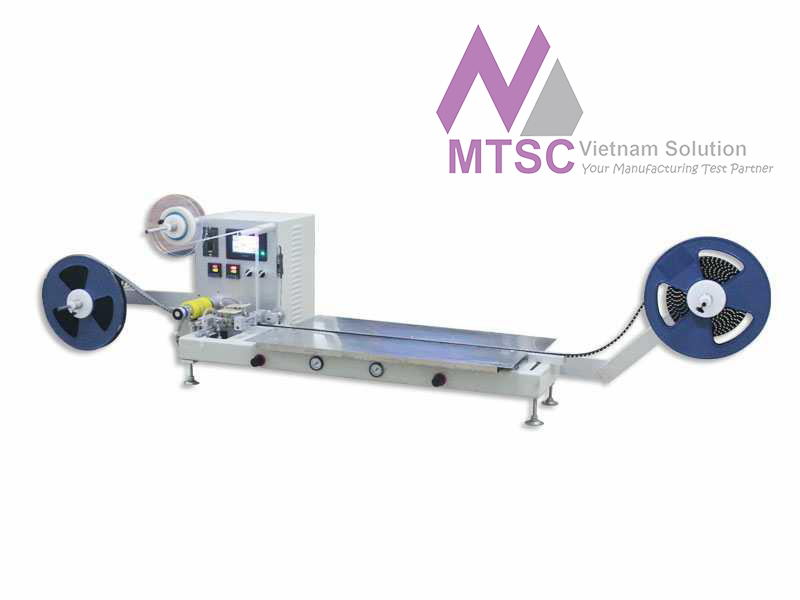

Extension KT101 ເຄື່ອງແຕະມ້ວນໜ້າຈໍສຳຜັດ

Tape & Reel Packing: Automatic seal, scroll and manual place the component.

Speed of Tape & Reel Packing: Adjustable speed, maximum speed is 400/meter per hour. In actual production, the speed of the machine should be adjusted according to the operator's placing speed and sealing process requirements.

Scope of application: 8 - 88mm carrier tape.

It has two kinds of inching sealing and flat pressure continuous sealing, which is suitable for self-adhesive sealing tape and hot sealing tape. Tensile strength is adjustable.

PLC control, stable temperature, accurate count, touch screen LCD interface, simple operation.

Power supply: AC220V - 50Hz.

Power Consumption: 400W.

Air pressure: 0.4 ~ 0.6Mpa.

Temperature: Room temperature ~ 300℃.

Volume: L2100mm*W650mm*H650mm.

Other specifications can be customized.

The machine can use 7”, 13”, 15”, 22”, 24” and other specifications of reel.

Net weight: 37KG.

Warranty: 12 months.
