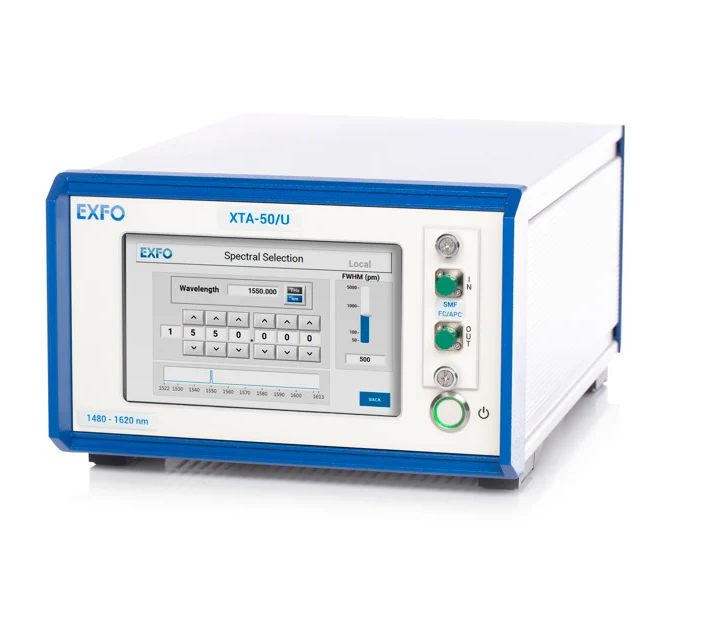

EXFO XTA-50 wide ຊຸດການກັ່ນຕອງແສງທີ່ສາມາດປັບໄດ້ດ້ວຍແຖບຄວາມຖີ່ສາມາດປັບໄດ້ (1525 to 1610 nm)
SPECIFICATIONS:
Optical characteristics :
Wavelength range (nm) : 1525 to 1610
Wavelength resolution (pm) : 1
Wavelength accuracy (pm) : ±30
Wavelength tuning speed (s) : 1
Minimum bandwidth (FWHM) : 50 pm (6.25 GHz)
Maximum bandwidth (FWHM) : 5000 pm (625 GHz)
Bandwidth resolution (pm) : 1
Bandwidth tuning speed (s) : 1
Filter edge roll-off (dB/nm) : 500 (typical)
Insertion loss (dB) : 5 (4.5 dB typical)
Flatness (dB) : 0.2
Polarization dependent loss (dB) : ±0.2
Out-of-band suppression (crosstalk) : 40 dB (45 dB typical)
Interfaces:
Display : 7 inch resistive touch-screen (resolution 800 x 480)
Communication interfaces : USB-B, Ethernet (x2)
Display and other interfaces : HDMI, display port, USB-A 3.2 (x3), USB-A 2.0 (x1)
Optical fiber type : SMF
Connector type : FC/PC or FC/APC
Operating conditions:
Temperature range : 15 °C to 35 °C (59 °F to 95 °F)
Maximum optical input power (dBm) : 27
Size:
Dimensions (W x D x H) : 254 mm x 385 mm x 154 mm (10 in x 15 1/8 in x 6 in)
Weight: 6.5 kg (14.33 lb)
