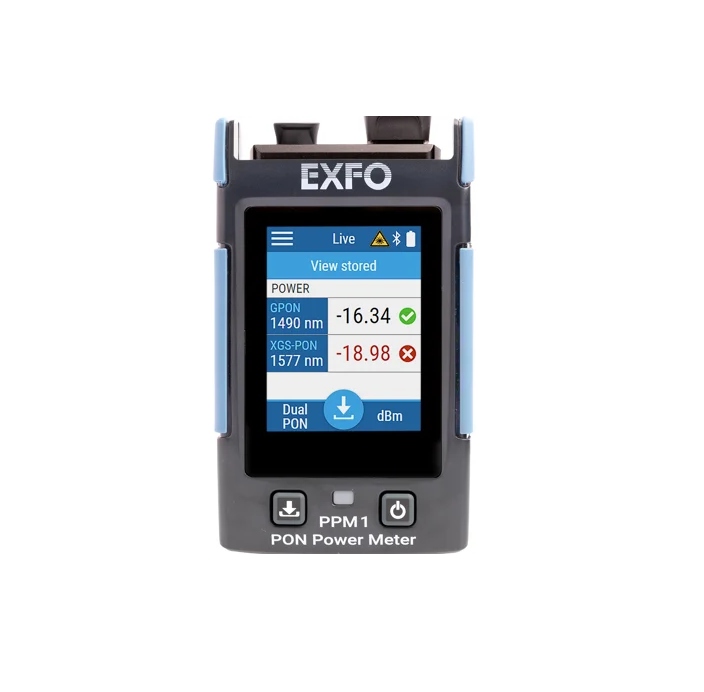

EXFO PPM1-PRO-D ເຄື່ອງວັດພະລັງງານ PON ທີ່ກະທົບໃສ່ການບໍລິການ EXFO PPM1-D (1310, 1490, 1550, 1577, 1625 nm)
Spectral passband (nm) : 1490 ±10, 1550 ±10, 1577 ±10
Calibrated wavelengths (nm) : 1310, 1490, 1550, 1577, 1625
Power measurement range (dBm): 15 to –45
Power uncertainty (dB) : 0.5
ORL (dB) : 55
Visual fault locator: Yes (3 modes—continuous, 1 Hz, 4 Hz)
Dedicated live tone detection : Yes
BROADBAND POWER METER SPECIFICATIONS (PPM1-PRO-D ONLY):
PPM1-PRO-D:
Wavelength measurement range (nm) : 1260 to 1469, 1481 to 1499, 1511 to 1625
Calibrated wavelengths (nm) : 1310, 1490, 1550, 1577, 1625
Power measurement range (dBm) : 15 to –45
Power uncertainty (dB) : 0.5
Auto-wavelength recognition and switching : Yes
Tone detection : 270 Hz, 330 Hz, 1 kHz, 2 kHz
GENERAL SPECIFICATIONS
Dimension: 133 mm x 78 mm x 30 mm (5 ¼ in x 3 in x 1 1/8 in)
Display size: 71 mm (2.8 in)
Weight (with battery): 225 g (0.5 lb)
Display type: Color display with capacitive touchscreen
Interface languages: Chinese (Simplified and Traditional), English, French, German, Spanish, Italian
Battery charging: < 2h when unit is off ; USB type C charging port connector; AC/DC charger/adapter input: 100 - 240 V; 50/60 Hz; 1.0 A max, output: 5 V; 2 A
Battery autonomy: 10 h (continuous use at brightness 50%, BLE: ON, AUTO: OFF)
Interfaces: Bluetooth 5.0 with BLE; USB type C
Storage capacity: 1000 test results for local reading
Temperature
Storage: –40 °C to 70 °C (–40 °F to 158 °F)
Operating: –10 °C to 50 °C (14 °F to 122 °F)
