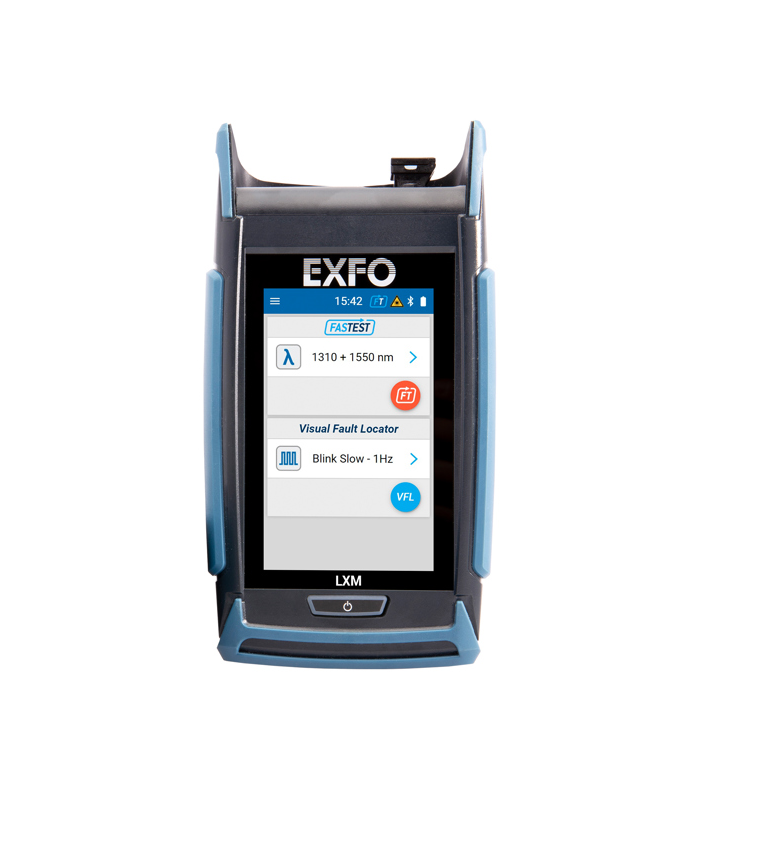

EXFO LXM-MM1 ອຸປະກອນການທົດສອບການສູນເສຍແສງ Ethernet (multi mode)

Optical connector : UPC MPO-12 male (pinned). Connector with protective shutter.

Emitter type:  LED

Wavelength (nm) : 850 ± 25; 1300 ± 20

Output power (dBm) : ≥ –33/ ≥ –33

Stability (8 h) (dB) : ±0.1

Warmup time (minutes) : 15

Tone generation : 270 Hz, 330 Hz, 1 kHz, 2 kHz

Datasheet
