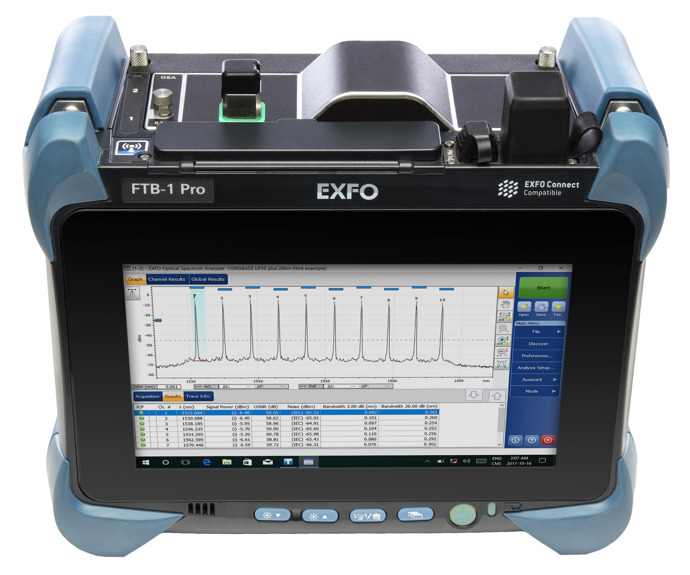

EXFO FTBx-5235 ເຄື່ອງວິເຄາະ spectrum optical (1250 to 1650 nm)
SPECTRAL MEASUREMENT
Wavelength range (nm): 1250 to 1650
Wavelength uncertainty (nm) : ±0.06; ±0.02
Reference: Internal
Resolution bandwidth (FWHM) (nm): ≤ 0.10
Wavelength repeatability 2σ (nm): ±0.005
Analysis modes: WDM and drift
POWER MEASUREMENT
Dynamic range (dBm) (per channel) : –65 to 23 dB
Maximum total safe power (dBm): 29
Absolute power uncertainty (dB): ±0.6
Power repeatability 2σ (dB): ±0.1
OPTICAL MEASUREMENT
Optical rejection ratio at 1550 nm (dB):
+ at 0.2 nm (25 GHz): 31 (35 typical)
+ at 0.4 nm (50 GHz): 40 (45 typical)
Channel spacing: 33 to 200 GHz CWDM
PDL (dB) : ±0.1
ORL (dB): >40
Measurement time (s) (includes scanning, analysis and display): <1.2
GENERAL SPECIFICATIONS
Size (H x W x D): 51 mm x 159 mm x 185 mm (2 in x 6 1/4 in x 7 5/16 in)
Weight: 1.2 kg (2.6 lb)
Temperature
Operating: 0 °C to 40 °C (32 °F to 104 °F)
Storage: —40 °C to 50 °C (—40 °F to 122 °F)
Relative humidity: < 95% non-condensing
Connectors: EI (EXFO UPC universal interface); EA (EXFO APC universal interface)
