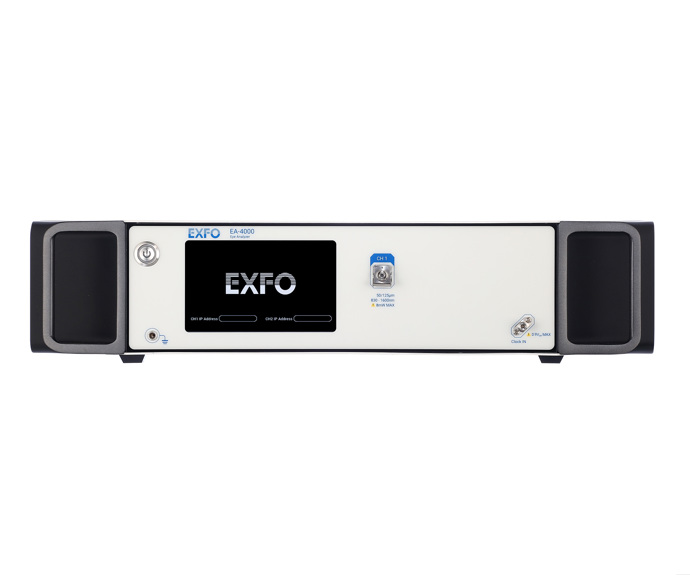

EXFO EA-4000 ເຄື່ອງວິເຄາະການມອງເຫັນແລະສະແດງຄື່ນກະແສໄຟຟ້າ (33 GHz)
TECHNICAL SPECIFICATIONS
Electrical
Sampling speed (sample/s): 1,000,000
Bandwidth (GHz): 33 (at 3 dB)
Input range (Vppd): 1.0 (max.)
Damage amplitude (Vppd): 1.7 (max.)
Connector type: K(f) (50 Ω)
Return loss (dB): –6.5 (at 32 GHz)
RMS noise (mV): 2.0 / 2.5 (max.)
Optical
Unfiltered bandwidth (GHz): 33 (for 28G optical)
Wavelength (nm): 830 to 1600 (full range model); 1250 to 1600 (SMF model)
Return loss (dB): –24 (full range model); –30 (SMF model)
Mask sensitivity (dBm) (CWDM4 mask, mask margin 0%, hit count 0): –8 (at 850 nm); –10 (at 1310 nm)
Damage power (mW): 8
Connector type: FC/PC (50/125 µm) (full range model); FC/PC (9/125 µm) (SMF model)
Clock
Clock input ratio: /2, /4, /8, /16, /32, /64
Trigger jitter (fs): <290
Sensitivity (mV): 100
GENERAL SPECIFICATIONS
Size (H x W x D): 103 mm x 442 mm x 300 mm (4.1 in x 17.4 in x 11.8 in)
Weight: ≤10 kg (22 lb)
Temperature
Operating: 5 °C to 40 °C (41 °F to 104 °F)
Storage: –20 °C to 70 °C (–4 °F to 158 °F)
Relative humidity: 20% to 80%
Power a: 100/120 Vac (50/60/400 Hz); 220/240 Vac (50/60 Hz); 60 W typical/80 W max.
Access interface: Gigabit Ethernet (RJ45 port)
