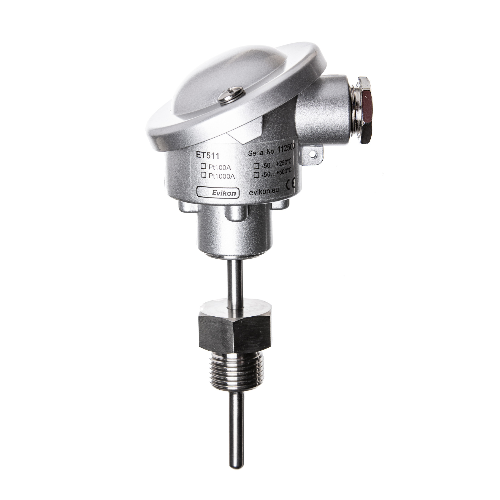

Evikon ET511 Screw-in RTD Sensors ກັບຫົວ terminal (-50~500°C)
Sensing element: Pt100, Pt1000, class A according to EN 60751
Measurement range: -50...+250 °C or -50...+500 °C
Protection tube: 1.4404 / AISI316L acid poof steel
Dimensions: Ø6 mm, L80...380 mm
Standard lengths: 75 / 100 / 130 / 160 / 200 / 250 / 300 / 350 mm
Protection class: IP55 as standard, up to IP67 on request
Terminal heads: DIN 43729 type B as standard
spherical type N with hinged lid on request
miniature type M on request
Ambient temperature: with screw terminal block -40...+100 °C
with transmitter -40...+75 °C
Output: ceramic terminal block with 2-, 3- or 4-wire RTD connection
Transmitter option: analog output 4...20 mA or 0...10 V
digital RS485 Modbus RTU interface
Mounting accessories: threaded thermowells
