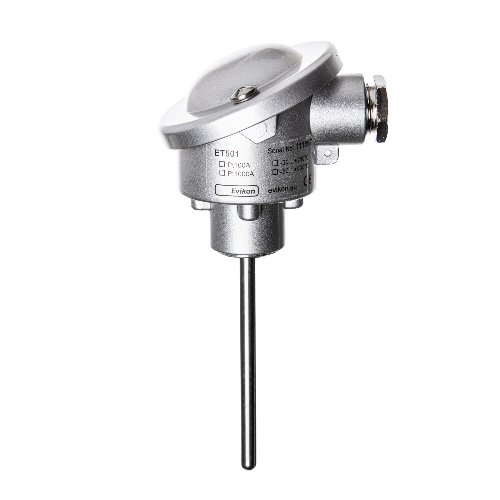

Evikon ET501 ເຊັນເຊີອຸນຫະພູມ Push-in ກັບຫົວ terminal (-50~500°C)
Sensing element: Pt100, Pt1000, class A or B according to EN 60751
Measurement range: -50...+250 °C or -50...+500 °C
Protection tube: A4 / AISI316L stainless steel
Dimensions: Ø6 mm, L80...380 mm
Standard lengths: 80 / 130 / 190 / 230 / 290 / 380 mm
Protection class: IP55 as standard, up to IP67 on request
Terminal heads: DIN 43729 type B as standard
spherical type N with hinged lid on request
miniature type M on request
Ambient temperature: with screw terminal block -40...+100 °C
with transmitter -40...+75 °C
Output: ceramic terminal block with 2 or 3-wire RTD connection
4...20 mA or 0...10 V analog
digital RS485 Modbus RTU interface
Mounting accessories: screw-fix flanges
threaded compression fittings
threaded thermowells
