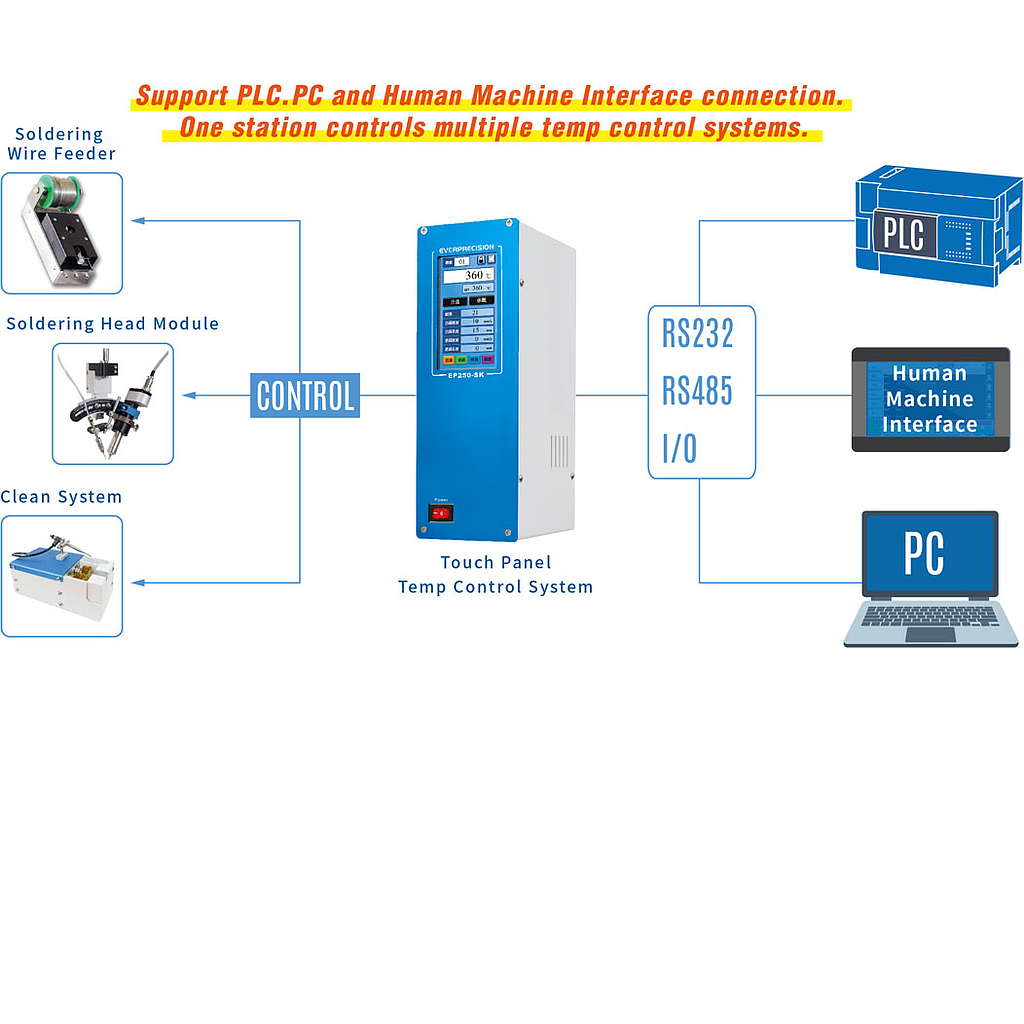

Automated Soldering Kit Description
Touch Panel Temp Control System
Soldering Wire Feeder
Soldering Head Module
Clean System
Soldering Tip (Optional)
Technical
Heater Capacity: 200W
I / O Signal: 10 Input / 6 Output
Temp Control System Dimensions: 273 x 92.5 x 153 mm
Clean System Dimensions: 235 x 105 x 99.5 mm
Soldering Parameter: Communication 256 units, I/O 16 units
Temp Control System Weight: 3.5 Kg
Soldering Wire Feeder Weight: 1.5 Kg
Communicate: RS232 、 RS485 、 I/O、MODBUS、TCP/IP
Working Humidity: 20-85% no condensation
Solder Wire Diameter: 0.4~1.2mm
Air Pressure: 5~7 Kg/cm²
Soldering Wire Feeder Dimensions: 200 x 80 x 100 mm
Max Temperature: 460℃
Power Supply: AC100V~230V/400W
Clean System Weight: 1.2 Kg
Soldering Head Module Weight: 1.0 Kg
Working Temp.: 10-40°C
