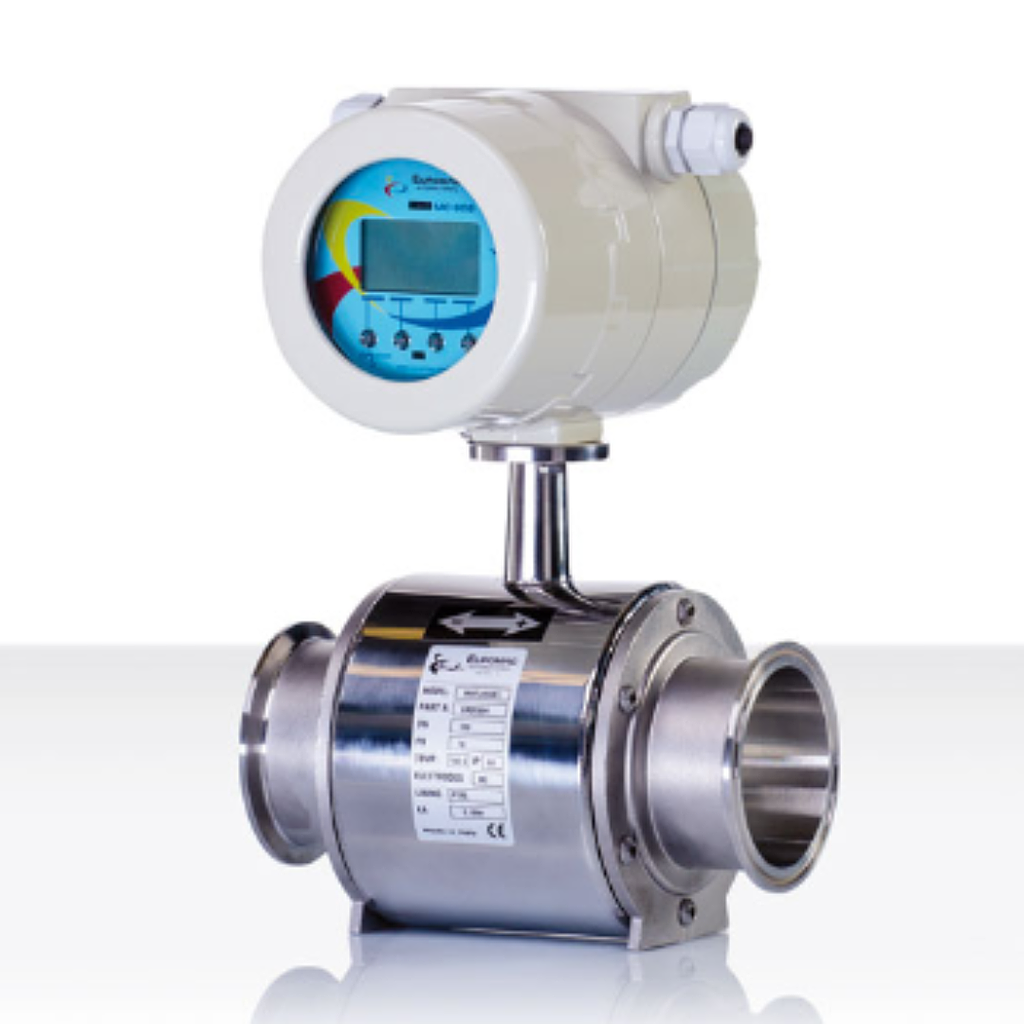

Technical Specifications
Flow tube material: AISI 304 / AISI 316 (optional)
Connections material :AISI304 / AISI 316 (optional)
Available electrodes: Hastelloy C (standard)/ Hastelloy B/ Titanium/Tantalum
Internal lining: PTFE for food
Liquid temperature Separate: -40°C / + 130°C (180°C optional) / Compact -25C° / + 80C°
Available diameters (mm) 25, 32, 40, 50, 65, 80, 100
Standard connections: Triclamp
Other connections available: DIN 11851 Female/ SMS 1146 Female
Standard operation pressure: 16 bar with Triclamp / 25 Bar with DIN or SMS
Number of electrodes: 2 Standards – 3rd electrode for empty pipe alarm as option
Installation requirements/conditions: U5 – D3
Protection Degree: IP68 permanent submersion at 1,5 m (EN 60529)
Convertes compatibility: MC608A/P
Electrical connections: Cableglands M20 x 1.5 + terminal box (aluminum std, polycarbonate optional) + sealing resin
Hygienic: FDA approved materials – EHEDG Pending
