Camera Head
Camera Size: Pan & Tilt Ø56mm head (1080P full HD 40mm Head)
Auto Leveling Function
Sensor: 1/3" CMOS
Resolution: 1920(H)×1080(V)
View Angle: 130°
Focus Distance: 15cm (approx)
Depth-of-Field: 20cm(approx)
Front Lens: Sapphire glass
Water-Proof: 10m Under Water(Camera fix on Cable)
Shell Material: #304 stainless steel
Lighting: 4pcs Highlight White LEDS
Operating Temperature: -10~50℃/+14~+120℉
Storage Temperature: -20~60℃/+4~+140℉
Built-in 512Hz sonde (Option)
Skids Included: 110mm, φ 150mm, φ 200mm
Cable Wheel
80M fiberglass rod cable
Dia. of push cable: 9mm
LCD Monitor
Screen: 10-inch 16:9 Super bright HD color LCD screen
Resolution: 1024x600 pixels
Mirror and Flip: support image mirror, and flip
Audio Recording: local sound record
Output: TV and Audio output
On-screen date and time
On-screen meter/ft. distance display(optional)
External memory: support U Disk or SD card up to 256GB
Control box Size: 32.7×22.7×15.0cm
Battery Supply
Charger: DC 13.5V / 1700 mA
Lithium Battery: 6600mAh
Output: 12V DC, ≤73Wh
Battery Level Display-charge Indicate
What's Included:
Control station with 10-inch LCD monitor, keyboard and joystick
Anti-glare screen visor
56mm pan tilt camera head
Built-In 512 Hz Sonde Transmitter
80m fiberglass cable and reel (dependent on configured order)
Heavy-duty case
6600mA Li-ion battery
Power adapter
Detachable spring kits (x-soft, soft, hard)
Interchangeable skids

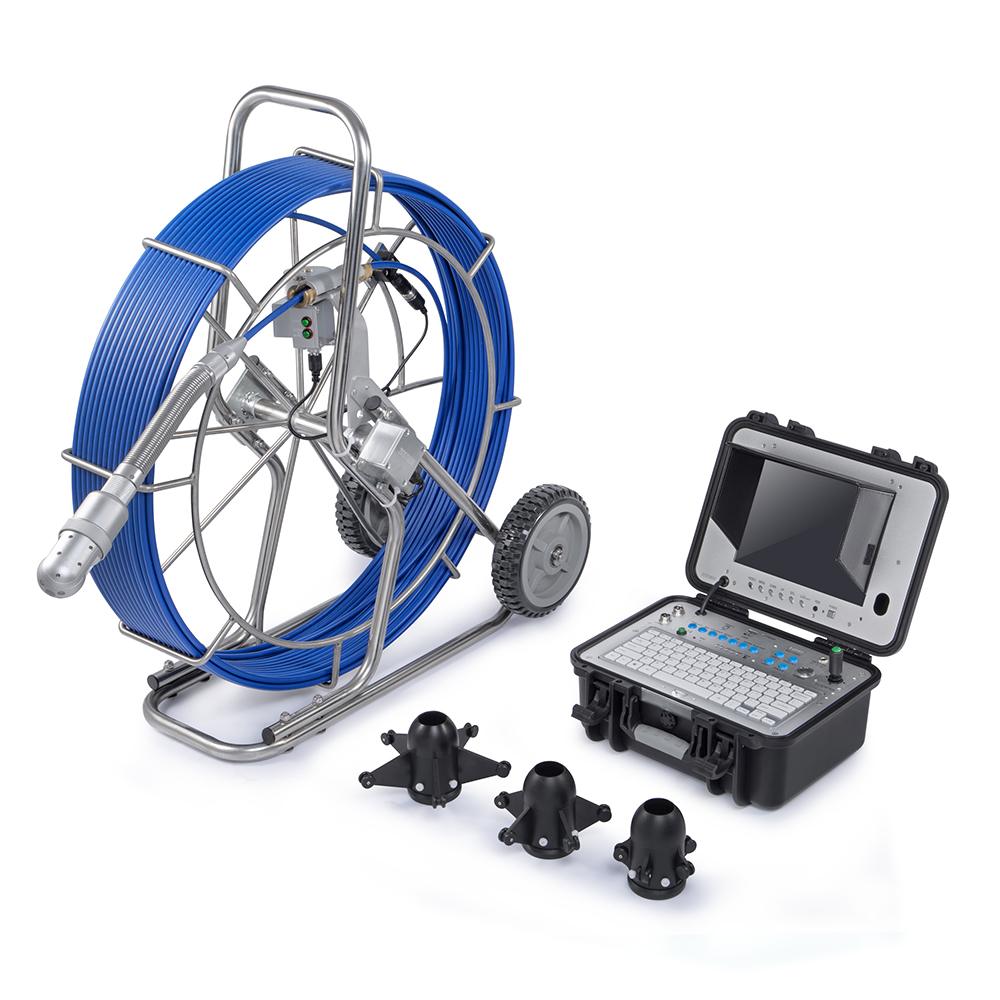

This is a professional video inspection camera with Φ56mm Pan andTilt camera head, 10" LCD monitor,Φ9mm rod cable, 60-120m length, SD card or USB stick recording, etc. It's designed for inspection of sewer,pipe, air ducts, undergound cable pipes, etc
This system is widely used in inspections of Sewer, central air conditioning, chimney, plumbing, building, cable pipe and pipes ventilation systems and other places
Brochure
