Camera Head
Camera Size: Pan & Tilt Ø28mm head (1080P full HD 40mm Head)
Auto Leveling Function
Sensor: 1/3" CMOS
Resolution: 960(H)×480(V)
View Angle: 130°
Focus Distance: 15cm (approx)
Depth-of-Field: 20cm(approx)
Front Lens: Sapphire glass
Water-Proof: 10m Under Water(Camera fix on Cable)
Shell Material: #304 stainless steel
Lighting: 2pcs Highlight White LEDS
Operating Temperature: -10~50℃/+14~+120℉
Storage Temperature: -20~60℃/+4~+140℉
Built-in 512Hz sonde (Option)
Skids Included: φ 50mm, φ 90mm
Cable Wheel
60M fiberglass rod cable
Dia. of push cable: 8mm
Material of cable: Fiberglass covered by PP
Wheel Diameter: 410×245×320 mm
LCD Monitor
Screen: 10-inch 16:9 Super bright HD color LCD screen
Resolution: 1024x600 pixels
Mirror and Flip: support image mirror, and flip
Audio Recording: local sound record
Output: TV and Audio output
On-screen date and time
On-screen meter/ft. distance display(optional)
External memory: support U Disk or SD card up to 256GB
Control box Size: 32.7×22.7×15.0cm
Battery Supply
Charger: DC 13.5V / 1700 mA
Lithium Battery: 6600mAh
Output: 12V DC, ≤73Wh
Battery Level Display-charge Indicate
What's Included:
Control station with 10-inch LCD monitor, keyboard and joystick
Anti-glare screen visor
C28 pan tilt camera head
Built-In 512 Hz Sonde Transmitter
200-ft fiberglass cable and reel
Heavy-duty case
6600mA Li-ion battery
Power adapter
Interchangeable skids

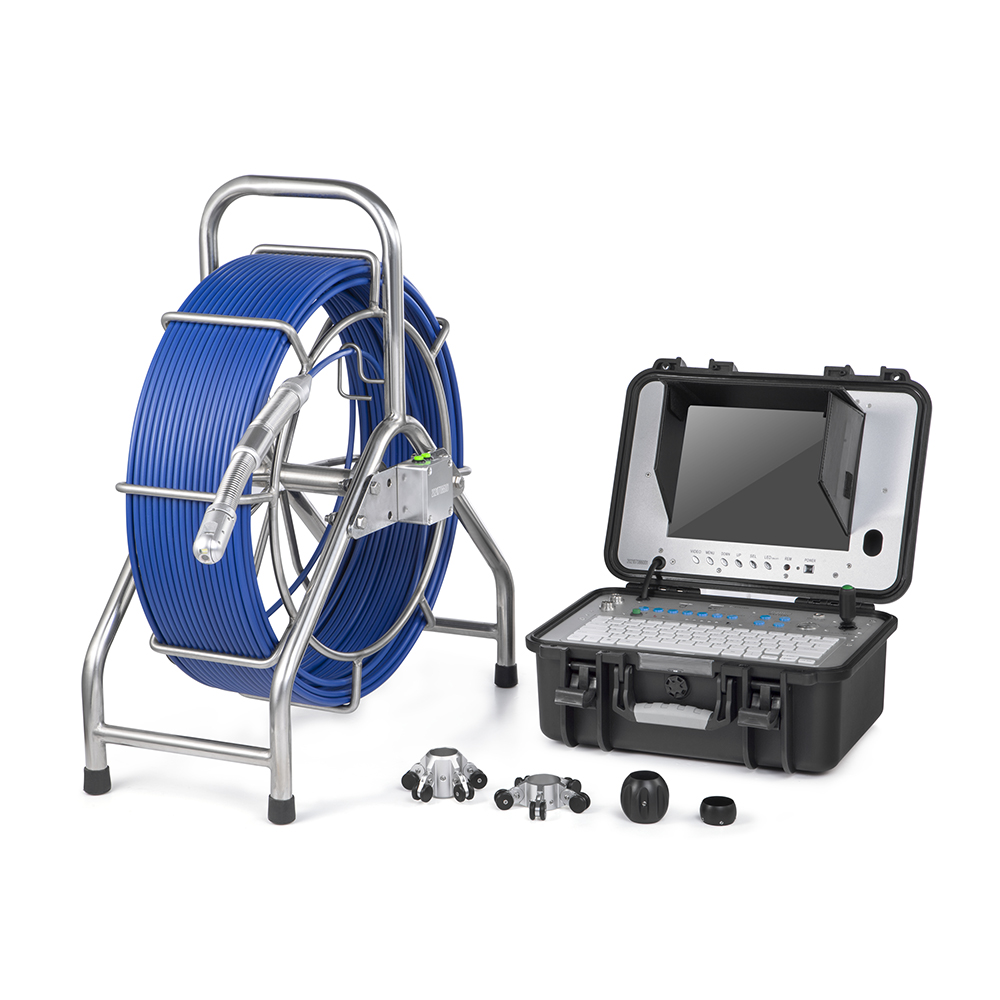

This variation of the 3388PT features a multifunctional control station with our 28mm camera and 60m/200FT of durable 8mm push cable with a built-in footage counter. The 28mm Pan-Tilt 180/360 Camera Head controlled by a Joy Stick w/ automatic centering, paired with a 512Hz transmitter located in the spring kit, provides a clear and detailed diagnostic for welds, laterals etc. Comes with 2 crawler Skids and set of plastic leveling skids.
This system is widely used in inspections of Sewer, central air conditioning, chimney, plumbing, building, cable pipe and pipes ventilation systems and other places.
