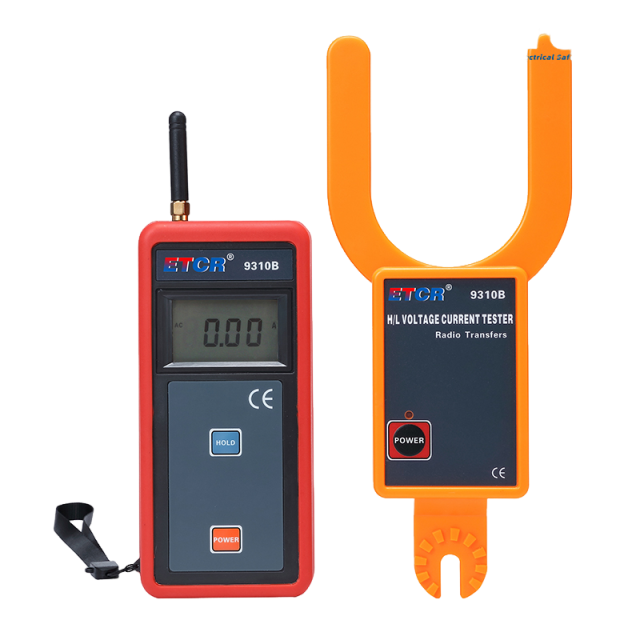

ETCR ETCR9310B Large Caliber Wireless H/L Voltage U-Type Current Meter (Φ68mm, AC 0.00A～9999A)
Power Supply: DC6V alkaline dry battery (1.5V AAA×4)
Display Mode: 4-digit LCD display, backlight function, suitable for dim place
LCD Size: 47mm×28.5mm
Measurement Method: Non contact U-shaped CT
Transmission Mode: 433MHz wireless transmission, transmission distance about 100m
Clamp Jaw Size: Φ68mm
Sampling Rate: 2 times/second
Measurement Range: 0.00A~9999A(50/60Hz automatic)
Solution: 0.01A
Shift Gear: 0.00A~9999A Fully automatic shift gear
Test Accuracy: ±2%rdg±5dgt(The wire is in the center position near the bottom of the U-shaped clamp jaw)
Position Error: The measured conductor should be placed as close as possible to the center of the bottom of the U-shaped clamp jaw, not close to the top of the U-shaped clamp jaw. The testing error at the top of the U-shaped clamp jaw should increase by about twice or more.
Memory: 99 groups, in storage process “MEM” symbol display, “FULL” symbol flicker indicate storage full
Line Voltage: Testing below 110kV requires insulating rod (testing below 500kV can be customized).
Data Hold: Press HOLD key to hold data in test mode, “HOLD" symbol display, press HOLD key again to cancel this function.
Data Access: "MR" symbol display, can look up all storage data
Overflow Display: Exceed measure range overflow function:"OL A" symbol display
No Signal Indication: When the receiver has not received transmit signal, dynamic display "no- -"symbol
Automatic Shutdown: After 15 minutes power on, the meter shuts down automatically without any operation to reduce battery consumption
Battery Voltage: When battery voltage is lower than 4.8V±0.2V,low battery voltage symbol display and remind to replace battery.
Meter Size: Meter: 107mm×252mm×31mm; Receiver: 78mm×165mm×42mm
Weight: Meter: about 235g (include battery), Receiver: about 280g(include battery), Total weight: about 4.23kg(include insulating rod and battery)
Telescoping Insulating Rod Size: About 4300mm
Interference: Avoid 315MHz, 433MHz same frequency signal interference
Insulation Strength: AC 220kV/rms (The telescopic insulating rod is completely pulled apart, between the two ends)
Working Temperature & Humidity: -10℃~40℃; below 80%RH
Storage Temperature & Humidity: -10℃~60℃; below 70%RH
