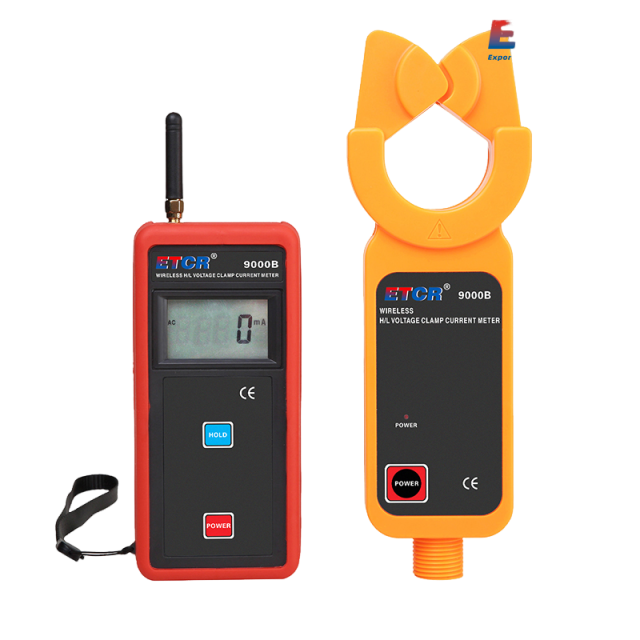

ETCR ETCR9000B H/L Voltage Clamp Meter ປະຈຸບັນ (Φ48mm, AC 0mA～1200A)
Power Supply: DC6V alkaline dry battery (1.5V AAA×4)
Display Mode: 4-digit LCD display, backlight function, suitable for dim place
LCD Size: 47mm×28.5mm
Measurement Method: Clamp CT, integration method
Transmission Mode: 433MHz wireless transmission distance 30m
Clamp Jaw Size: Φ48mm
Sampling Rate: 2 times/second
Measurement Range: 0mA~1200A(50/60Hz automatic)
Max. Solution: 1mA
Shift Gear: 0mA~1200A Fully automatic shift gear
Test Accuracy:
0mA~99.9A: ±1%rdg±5dgt
100A~599A: ±1.5%rdg±5dgt
600A~1200A: ±2%rdg±5dgt
Memory: 99 groups, in storage process “MEM” symbol display, “FULL” symbol flicker indicate storage full
Line Voltage: Test below 110kV, operating with insulating rod
Data Hold: Press HOLD key to hold data in test mode, “HOLD" symbol display, press HOLD key again to cancel this function.
Data Access: "MR" symbol display, can look up all storage data
Overflow Display: Exceed measure range overflow function:"OL A" symbol display
No Signal Indication: When the receiver has not received transmit signal, dynamic display "no- -"symbol
Automatic Shutdown: After 15 minutes power on, the meter shuts down automatically without any operation to reduce battery consumption
Battery Voltage: When battery voltage is lower than 4.8V, low battery voltage symbol display and remind to replace battery.
Meter Size: Meter: 255mm×84mm×39mm; receiver: 165mm×78mm×42mm
Weight: Meter: about 363g(include battery),receiver: about 272g(include battery)，total weight: 3.3kg(include insulating rod accessories)
Interference: No 315MHz, 433MHz same frequency signal interference
Telescoping Insulating Rod Size: About 4300mm
Insulating Rod Withstand Voltage: AC 110kV/rms (The telescopic insulating rod is completely pulled apart, between the two ends)
Working Temperature & Humidity: -10℃~50℃; below 80%RH
Storage Temperature & Humidity: -10℃~60℃; below 70%RH
