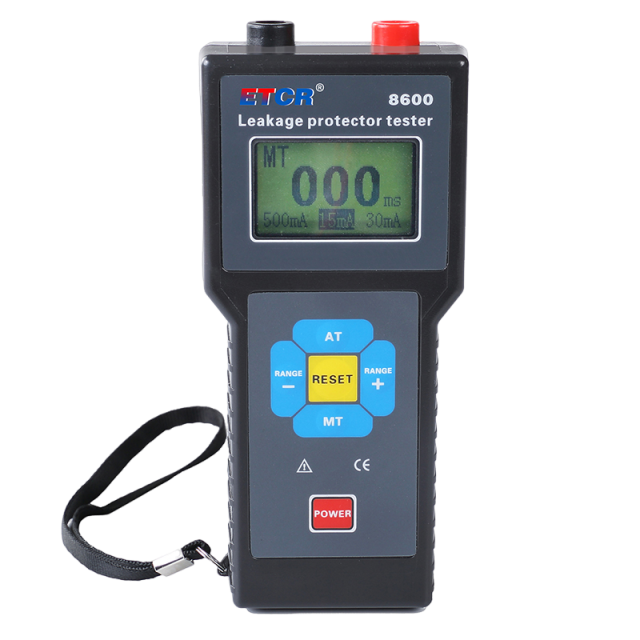

ETCR ETCR8600 ເຄື່ອງທົດສອບຕົວປ້ອງກັນການຮົ່ວໄຫຼແບບພະກະພາ (15mA~500mA, 10 gears, 0ms~999ms)
Power Supply: DC6V alkaline dry battery LR6 1.5V×4
Display Mode: LCD: 128dots×64dots
LCD Size: Display area: 44mm×27mm
Rated Voltage: AC 220V (During leakage protection switch testing, between instrument interface)
Test Line Voltage: 220V/380V
Leakage Current Gear: 15mA, 30mA, 50mA, 75mA, 100mA, 150mA, 200mA, 250mA, 300mA, 500mA
Gear Current Accuracy: ±10%rdg+2dgt
Test Range Of Leakage Current Operating Time: 0~999ms
Display Accuracy Of Leakage Operating Time: ±5%rdg±3dgt
Failure Message Indication: LCD display “fault” failure information indication, indicates that tested rated operating current gear is low or leakage protector has fault.
Length of test line: 1.5m
Test Mode: Manual or automatic
Tester Size: 170mm×75mm×30mm
Weight: About 290g (include battery); Total weight: about 350g(include package)
Battery Voltage: When the battery voltage drops to 4.8V, the low battery voltage symbol is displayed to remind the battery to be replaced.The measured data at this time is also accurate.
Working Current: 40mA Max
Insulation Withstand Voltage: 100MΩ or greater, AC2kV/rms(between the housing and screw)
Suitable Safety Standard: IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V) IEC61326(EMC Standard)
Working Temperature & Humidity: -10℃~40℃; below 80%RH
Store Temperature & Humidity: -10℃~60℃; below 70%RH
