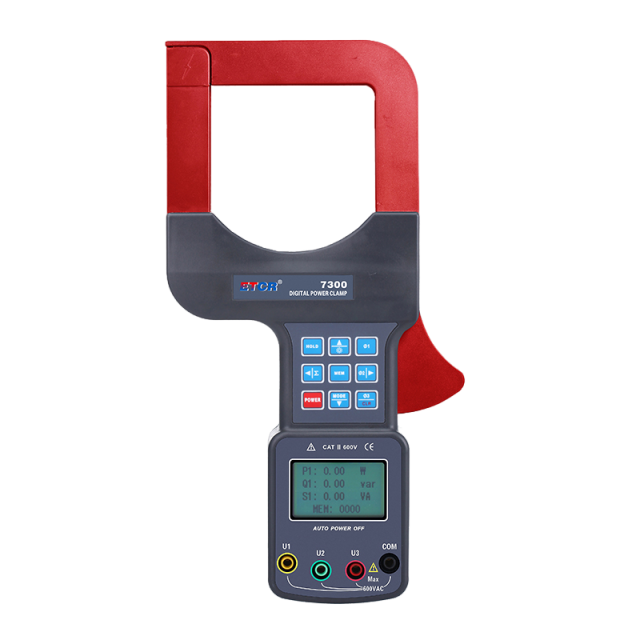

ETCR ETCR7300 ເຄື່ອງທົດສອບພະລັງງານ 3 ຂະຫນາດໃຫຍ່ (80mm×80 mm, AC 1200A, AC 600V, 100.0Hz, 720kW)

Function: Measure leakage current, active power, reactive power, apparent power and other parameters

Current Range: AC 0.00mA~1200A|   Resolution 0.01mA

Power Range: AC 0.5W~720kW |  Resolution 0.01W

Apparent Power Measurement: AC 0.50VA~720kVA | Resolution 0.01VA

Reactive Power Measurement: AC 0.50var~720kvar | Resolution 0.01var

Voltage Range: AC 0~600V Resolution 0.01V

Frequency Range: 25Hz~100Hz Resolution 0.1Hz

Phase Range: 0.0°~360.0° |  Resolution 0.1°

Power Factor Range: 0.300~1.000|   Resolution: 0.001

Power Energy Range: 0.000kWh~72000kWh | Resolution 0.0001kWh

Highest precision: ±(1.5%rdg+5dgt)

Power Supply: DC6V alkaline dry batteries (LR6 1.5VX4PCS)

Working Current: Backlight open 50mA; Backlight close 25mA

Weight: 830g (with battery)

Meter Dimension: 275mmX145mmX40mm

CT Size: 80mmX80mm (can clamp φ80mm cable or 96mmX4mm steel flat ground cable)

Sampling Rate: 2 times/second

Frequency: 50Hz, 60Hz automatic identification

Communication Interface: Storage data can be uploaded to computer, convenient to data analyze, communication cable length: 1.8m

Data Storage: 200 groups, flash display “FULL” symbol indicate storage full

Data Hold: Data hold function: “HOLD” symbol display

Overflow Display: Exceed measure range overflow function: “OL” symbol display

Auto Shut Down: 15 minutes after power on, it will shut down automatically without any operation to reduce the power consumption.

Battery Voltage: While battery voltage is lower than 5.2V. low battery voltage symbol display, remind to replace the battery

Backlight: Yes, Controlled by “ * ”key

Line Voltage: Below AC 600V circuit measurement

Accessories: Meter: 1PCS; Test Wires: 4PCS (each of yellow, green, red, black); Communication cable: 1PCS; Meter Case: 1PCS; LR6 battery: 4PCS
