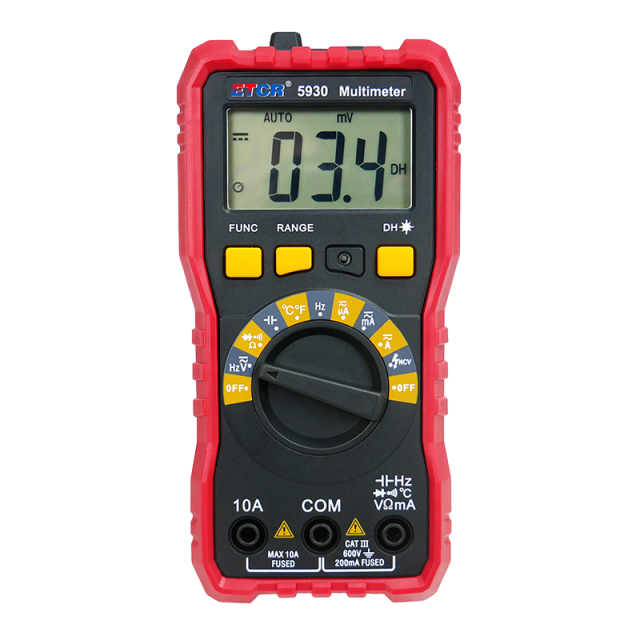

ETCR ETCR5930 Voltmeter ດິຈິຕອລ (AC/DC 600V, AC/DC 10A, 20MΩ, 2mF, 20Mhz)
Power Supply: 3V DC LR03×2 PCS alkaline dry battery
LCD Size: 46mm×25mm; Max display: 1999
Voltage Measurement
Range: DC 0.0mV~600V | Max solution: 0.1mV | Max accuracy: ±(0.5%+5)
Range: AC 0.mV~600V | Max solution: 1mV | Max accuracy: ±(1.2%+5)
Current Measurement
Range: DC 0.0uA~10A | Max solution: 0.1uA | Max accuracy: ±(1.2%+5)
Range: AC 0.0uA~10A | Max solution: 0.1uA | Max accuracy: ±(1.5%+5)
Resistance Measurement: Range: 0.0Ω~20MΩ | Max solution: 0.1Ω | Max accuracy: ±(0.8%+5)
Capacitance Measurement: Range: 0.00nF~2mF | Max solution: 0.01nF | Max accuracy: ±(3%+5)
Frequency Measurement: Range: 0.0Hz~20MHz | Max solution: 0.1Hz | Max accuracy: ±(0.5%+3)
Temperature Measurement: Range: 0℃~1000℃ | Max solution: 1℃ | Max accuracy: ±(1.2%+4)
Meter Size: 152mm×73mm×48mm
Weight: Meter: about 230g (include battery); Total weight: 365g (include accessory)
Backlight: Yes
Data Hold: Yes
Continuity Measurement: Yes
Diode forward voltage drop: Yes
Fuse: F 200mA, 10A (Geometric dimension Φ3.8×10mm)
Automatic Shutdown: After 15minutes will automatic shutdown without any operation
Overflow Display: Exceed measurement range overflow function: "OL" symbol display
Overload Protection: Yes
Input Impedance: About 10MΩ
Battery Voltage: When the low battery indicator symbol is displayed, remind to replace the battery
Line Voltage: Line measurement below AC 600V
Working Temperature: 0℃- 40℃ relative humidity <75%
Store Temperature: -10℃- 50℃ relative humidity <80%
