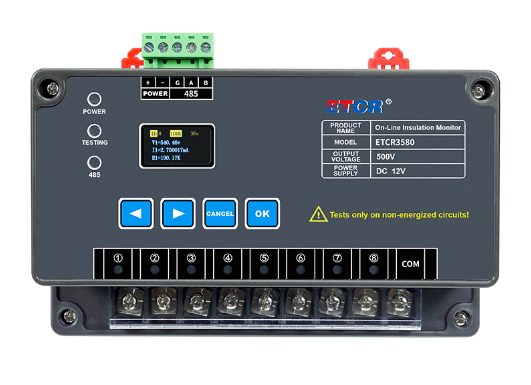

ETCR ETCR3580 ເຄື່ອງກວດຈັບຄວາມຕ້ານທານສະນວນໄຟແບບອອນໄລນ໌ (5mA, 0.1MΩ~10GΩ, 500V, 1~8 Channel)
Power Supply: DC 12V(External power supply)
LCD Size: 21.7mmX10.9mm
Output Voltage: 50V, 100V, 250V, 500V Self-set
Short Circuit Current: 5mA MAX
Resistance Test Range: 0.1MΩ~10GΩ
Test Accuracy: ±5%rdg±5dgt
Communication Mode: RS485 communication
Test Time: 60s
Data Transmission: Insulation resistance value, dielectric absorption ratio
Test Loop Quantity: 1~8 Channel
LCD Displayer: Display the present testing circuit loop and insulation resistance value
Indicator: Power indication, testing indication, RS485 communication
Installation Mode: Guide rail installation or mounting screw installation
Power Consumption: Standby 2W MAX 8W
Dimension: 169mm×104mm×73mm
Weight: Instrument weight: about 464g; total weight: about 0.6kg(include accessory)
Working Temperature & Humidity: -20℃~60℃; below 80%RH
