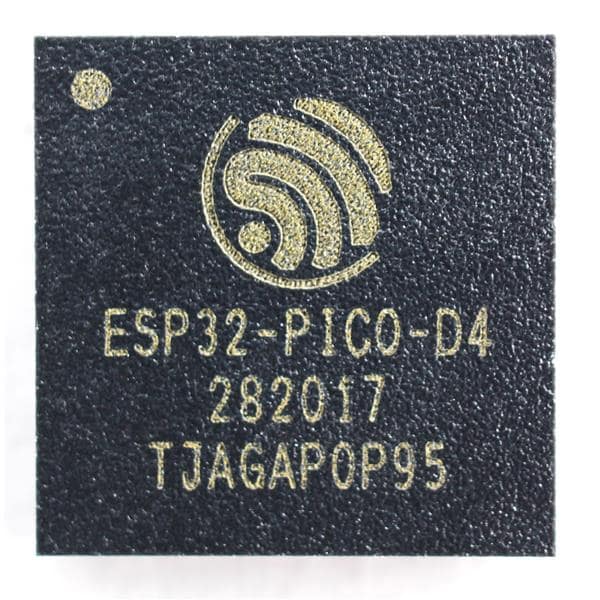

Espressif Systems ESP32-PICO-D4 ບລູທູດ, ວາຍ-ໄຟ SIP ໂມດູນ ESP32 ມີ Flash 4MByte, Dual Core MCU, ວາຍ-ໄຟ ແລະ ບລູທູດ Combo, LGA48-pin, 7*7mm

Core: LX6

Width: 7 mm

Height: 0.94 mm

Length: 7 mm

Technology: Si

Sensitivity: - 97 dBm

Unit Weight: 1.479 g

Output Power: 20 dBm

Data RAM Size: 520 kB

Data RAM Type: SRAM

ADC Resolution: 12 bit

Data Bus Width: 32 bit

Interface Type: I2C, I2S, JTAG, SPI, UART

Mounting Style: SMD/SMT

Maximum Data Rate: 150 Mbps

Moisture Sensitive: Yes

Operating Frequency: 2.4 GHz

Program Memory Size: 4 MB

Program Memory Type: Flash

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 3 V

Number of ADC Channels: 10 Channel

Maximum Clock Frequency: 40 MHz

Supply Current Receiving: 80 mA

Supply Current Transmitting: 500 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
