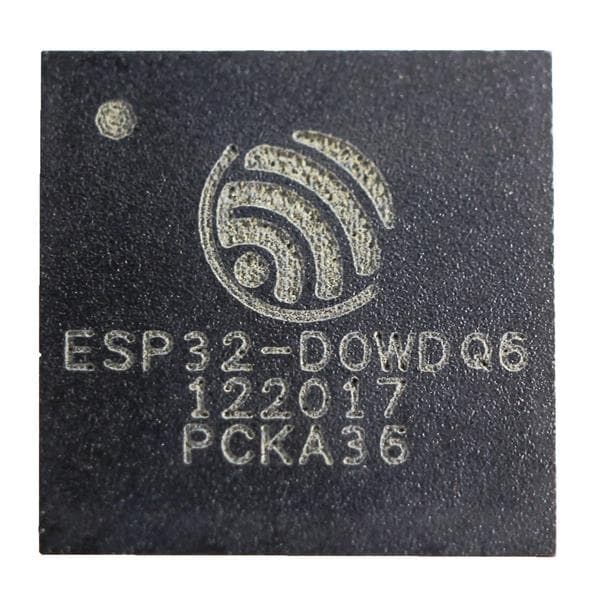

Espressif Systems ESP32-D0WDQ6 Bluetooth, Wi-Fi SMD IC ESP32-D0WDQ6, Dual Core MCU, WiFi ແລະ Bluetooth Combo, QFN48-pin, 6*6mm

Core: LX6

Width: 6 mm

Length: 6 mm

Technology: Si

Sensitivity: - 75 dBm

Unit Weight: 97.500 mg

Output Power: 20.5 dBm

Data RAM Size: 16 kB, 520 kB

Data RAM Type: SRAM

ADC Resolution: 12 bit

Data Bus Width: 32 bit

Interface Type: CAN, I2C, I2S, SDIO, SPI, UART

Mounting Style: SMD/SMT

Number of I/Os: 34 I/O

Number of Timers: 2 Timer

Maximum Data Rate: 150 Mbps

Moisture Sensitive: Yes

Operating Frequency: 2.4 GHz

Program Memory Size: 448 kB

Program Memory Type: ROM

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2.3 V

Number of ADC Channels: 18 Channel

Maximum Clock Frequency: 240 MHz

Supply Current Receiving: 95 mA to 100 mA

Supply Current Transmitting: 240 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
