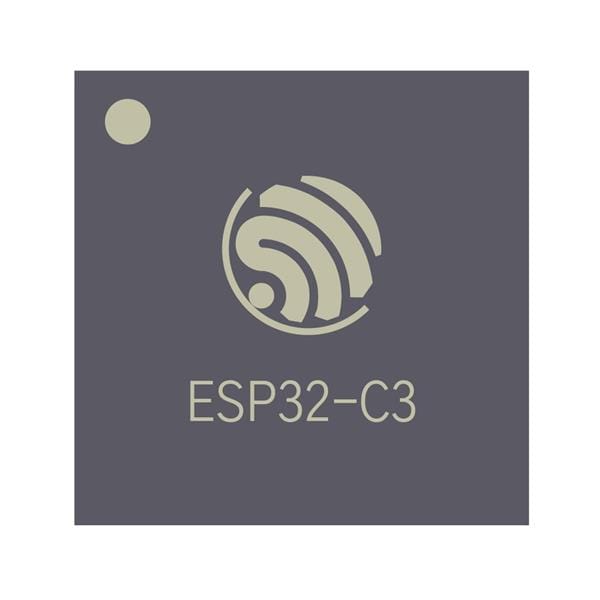

Espressif Systems ESP32-C3 BLE 5.0, Wi-Fi SMD IC ESP32-C3, MCU ເຄື່ອງຫນຶ່ງໃຈ, 2.4G Wi-Fi ແລະ BLE 5.0 ຄອມໂບ, QFN 32-ຂາຍ, 5*5 mm

Core: RISC-V

Width: 5 mm

Height: 0.85 mm

Length: 5 mm

Technology: Si

Sensitivity: - 105 dBm

Output Power: 18 dBm

Data RAM Size: 400 kB

Data RAM Type: SRAM

ADC Resolution: 12 bit

Data Bus Width: 32 bit

Interface Type: GPIO, I2C, I2S, SPI, UART

Mounting Style: SMD/SMT

Maximum Data Rate: 150 Mbps

Moisture Sensitive: Yes

Operating Frequency: 2.4 GHz

Program Memory Size: 384 kB

Program Memory Type: Flash

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 3 V

Number of ADC Channels: 6 Channel

Maximum Clock Frequency: 160 MHz

Supply Current Receiving: 87 mA

Supply Current Transmitting: 325 mA

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
