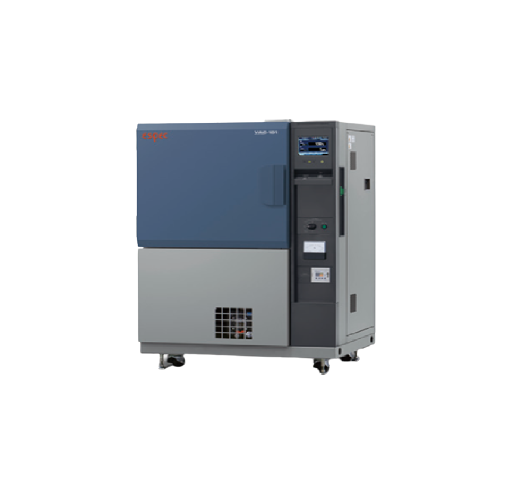

ESPEC VAC−101P ເຕົາອົບສູນຍາກາດ (40~200℃, 933×102~1×102 Pa, 91L)
Pressure control system: PID control
Temperature performance:
Temperature range: ＋40 to ＋200℃ (＋104 to ＋392℉)
Temperature constancy: ± 0.5℃ (vacuum), ±1℃ (atmospheric)
Time to reach extreme temperature value: Within 50 min.
Pressure performance:
Pressure range: 933×102 to 1×102 Pa
Ambient pressure: Less than 133 Pa
Pull-down time: From atmospheric pressure to 133 Pa within 7 min.
Atmospheric pressure recovery time: Inlet open to atmosphere within 4 min.
Fittings: Leveling feet and casters (free wheel) 4pcs each, Time signal terminals × 2pcs
Effective internal volume: 91 L
Effective internal dimensions: W450×H450×D450 mm
Outside dimensions: W902×H1392×D782 mm
Weight: 320 kg
Shelf support load resistance: up to 100kg (30kg/ stage, Total load of 5 stages)
Test area load resistance: up to 100kg
Allowable ambient conditions: ＋12 to ＋35℃ (＋41 to ＋ 95℉)
Power supply:
220V AC 1φ 50/60Hz: 13.2 A
230V AC 1φ 50/60Hz: 12.8 A
ACCESSORIES:
● Breaker handle stopper: 1
● Cartridge fuse (3A): 1
● User's manual: 1
● Warranty card: 1
