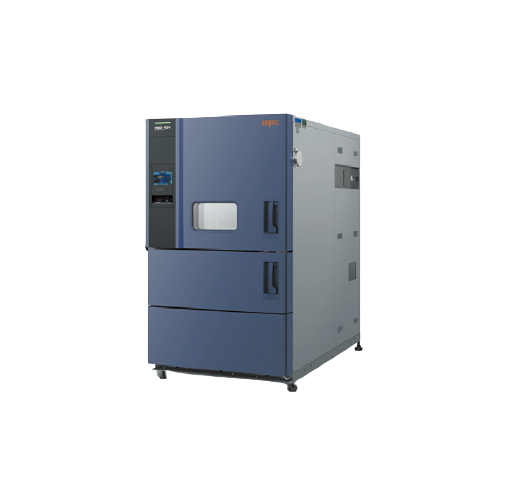

System: 2-zone transition by vertical transfer of specimens
Performance:
Test area:
Hot exposure range: ＋60 to ＋205℃ (＋140 to ＋401℉)
Cold exposure range: −77 to 0℃ (−106 to ＋32℉)
Temp. fluctuation: ±1.0℃
Hot chamber:
Heat up time: Ambient temp. to +200°C within 90 min.
Cool chamber:
Pull down time: Ambient temp. to –77°C within 90 min.
Temp. recovery: specimen IC temp. within 15 min.
Inside Dimensions: W710×H345×D410 mm (W27.95×H13.58×D16.14 inch)
Outside dimensions: W1100×H1885×D1965 mm (W43.31×H74.21×D77.36 inch)
Inner volume of test area: 100 L
Weight: Approx. 1100 kg
Utility requirements:
Allowable ambient conditions: ＋5 to ＋40℃ (＋41 to ＋104℉)
Power supply: 380V AC 3φ 50Hz: 34 A
400/415V AC 3φ 50Hz: 32 A
Cooling water supply rate: 2050L/ h (at reference water temp. ＋25℃), 3400L/ h (at reference water temp. ＋32℃)
Cooling water temp. range: ＋5 to ＋38℃ (＋41 to ＋100℉)
Exhaust heat rate: 12600 kJ/h (3000 kcal/h)
INCLUDED ACCESSORIES
● Specimen basket:
(18-8 Cr-Ni stainless steel: 5 mesh metal basket) W700×H40×D410 mm/ load capacity 5kg: 2
● Shelf brackets: 2 sets
● Cartridge fuse (3A, 5A, 7A, 10A, 15A): 4
● Cable port rubber plug: 2
● Perforated cable port cap: 1
● Wire fisher (specimen wiring tool): 1
● Thermocouple: 2
● Specimen temperature input connector: 2
● 3-pole socket (208V AC spec. only): 3
● Nipple R1 1/4 in. (32 A): 1
● Strainer R1 1/4 in. (32 A): 1
● Strainer element R1 1/4 in. (32 A): 1
● Breaker handle cover (except 208V AC): 1
● Operation manual: 1
