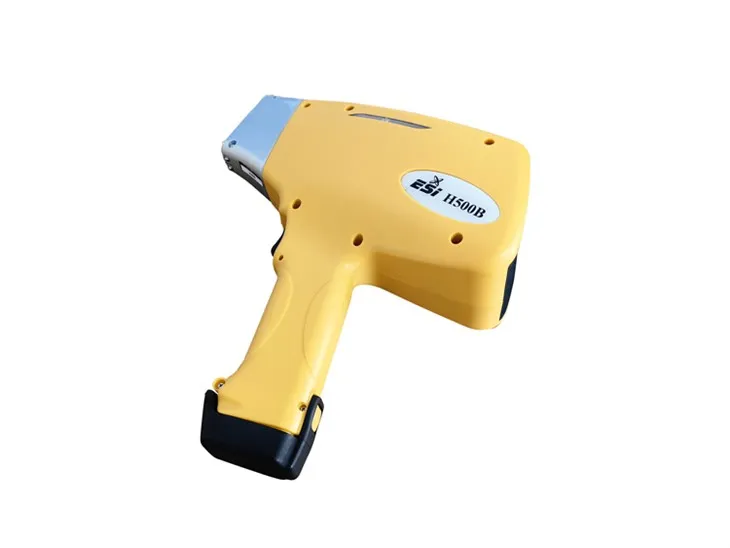

ESi H500B ປືນທົດສອບ XRF ຄຳ

The H500 offers the best of both worlds. A handsome analyzer fit for the consumer showroom environment, it can also be networked for high productivity QA/QC jobs. The H500 can be transported easily to any location where testing is needed.

1. Weight 1.9 Kg (with battery), 1.6 Kg (without battery)

2. Dimensions 234mm(L) x 82mm(W) x 306mm(H)

3. Excitation Source X-ray tube (Ag target Au target optional), max. 40kV/100μA

4. Detector SDD, 25 mm2, 0.3mil, resolution<150eV

5. OS Windows CE operating system in embedded PDA

6. FP algorithm Software with both EC and FP calibration curves

7. Power Consumption DC9V

12W Max (working)

8W Max (standby)

2W Max (sleep)

8. Power Source Rechargeable li-ion battery, 7800mAH, 4-6 hours running

110V/220V Wide-voltage universal adapter for AC power

9. Charger DC charger: car charger

AC charger: 110/220V, 50/60HZ

10. Collimator and Filter 4.0/2.0 mm-diameter collimator, 6 kinds of filter materials, 12 switchable combinations can meet measurement requirements on various samples

11. Standard Analytical Range 14 elements including all precious metals

Standard Accessories

- Carrying Case

- Li-ion Battery

- Battery Charger

- USB Cable

- 316 Stainless Steel Calibration Standards

- FP Software and calibrations

- Integrated Wrist Strap

- Factory Authorized Training & Support

- Electronic User Manual and Quick Start Guide

- Test membrane

- 2G memory card

- Memory card reader

Typical Applications

- Price cash-for-gold pieces quickly and accurately

- Identify and characterize a wide range of alloys including silver, platinum, and others

- Identify hazardous elements in samples such as lead

- Manage quality control of refining and melting operations

- Gold plating Thickness Analysis
