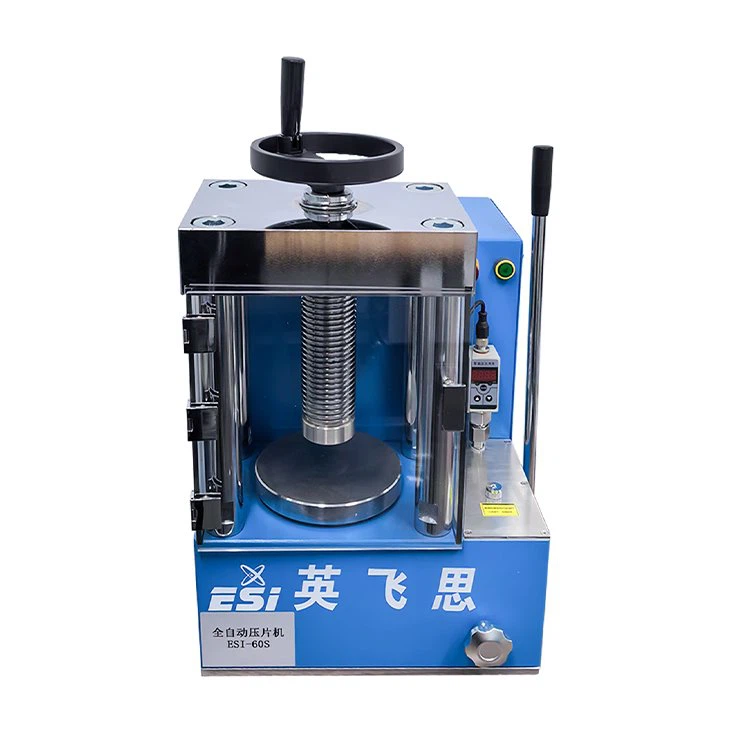

ESi ESI-60S ເຄື່ອງກົດເມັດອັດຕະໂນມັດ (0–60T (0–33 MPa))

Pressure range: 0–60T (0–33 MPa)

Piston diameter: Φ150 mm (d)

Integral structure: 2013 2 0040218.0

Pressure gauge: 0–40.0 MPa

Maximum pressure: 50 mm (T)

Pressure stability: ≤1 MPa/10 min

Pressurization method: Electric-powered / Manual pressurization

Method of pressure compensation: Automatic pressure make-up / Manual slow pressurization

Workbench diameter: Φ160 mm (D)

Number of columns: Four

Working space: 185 × 250 mm (M × N)

Dimensions: 405 × 470 × 565 mm (L × W × H)

Power: 220V (50Hz/60Hz)

Weight: 140 kg

Features

The high-end fully automatic desktop tablet press has the advantages of programmed pressurization and convenient operation. It is suitable for high-end laboratories.

The mold pressure can be automatically converted, eliminating the need for manual conversion and avoiding mold damage caused by misoperation, making the operation more user-friendly.

The liquid crystal screen display enables more intuitive operation and clearer display, facilitating users' operation.
