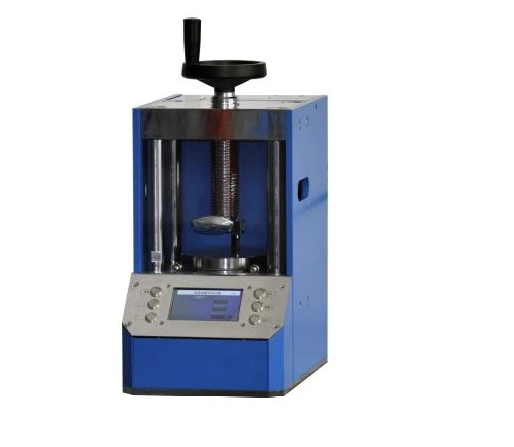

ESi ESI-30S ເຄື່ອງກົດເມັດເຄິ່ງອັດຕະໂນມັດ 30 ໂຕນ

Piston diameter: Φ110 mm (d)

Integral structure: No sealing connection, oil leakage reduced

Pressure gauge: Digital display 0.00–40.00 MPa

Maximum pressure: 40 mm (T)

Pressure stability: ≤1 MPa/10 min

Pressurization mode: Electric / manual

Compensation mode: Auto / manual

Workbench diameter: Φ120 mm (D)

Number of columns: Four

Working space: 92 × 160 mm (M × N)

Dimensions: 275 × 430 × 420 mm (L × W × H)

Power supply: 220V (50Hz/60Hz)

Weight: 72 kg

Features

High-end automatic table-top tablet press, with the advantages of program pressure and convenient operation, suitable for high-end laboratories.

Automatic conversion of mold pressure, eliminating the need for manual conversion, so as to avoid damage to the mold due to misoperation, and the operation is more user-friendly.

LCD display, more intuitive operation and clearer display. User-friendly operation
