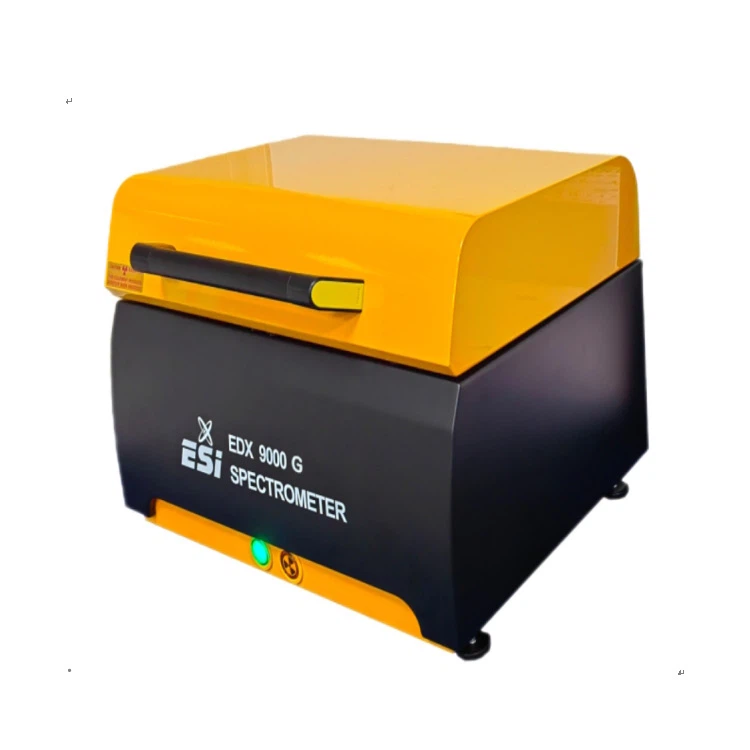

ESi EDX-9000G ເຄື່ອງວັດແທກການວິເຄາະແກ້ວປະເສີດທຳມະຊາດ (Na11-U92)

>Instrument Specifications

Size of Spectrometer: 560mm*380mm*410mm

Size of sample chamber：460mm*310mm*95mm

Size of Vacuum sample chamber：Φ150mm×75mm

Weight: 45Kg

Element Range：Na11-U92

Detector：SDD

DPP Analyzer: 4096 Channel

Sample observation system: 5-megapixel high-definition CCD camera.

Excitation Source：Beryllium window high-power light tube50W X-ray tube

Power supply：220ACV 50/60HZ

Environment：-10 °C to 35 °C

Accessory

>Standard

Ag- Calibration standard

Vacuum pump

Gemstone Sample cup

USB cable

>Optional

Mill machine

Gemstone-specific testing

Factory and calibration report of the instrument

Warranty card

Applications

Gemstone processing factory

Gold, silver, jewelry, and gem store

Gem trading center

Quality inspection department

Analysis and testing center

Pawnshop
