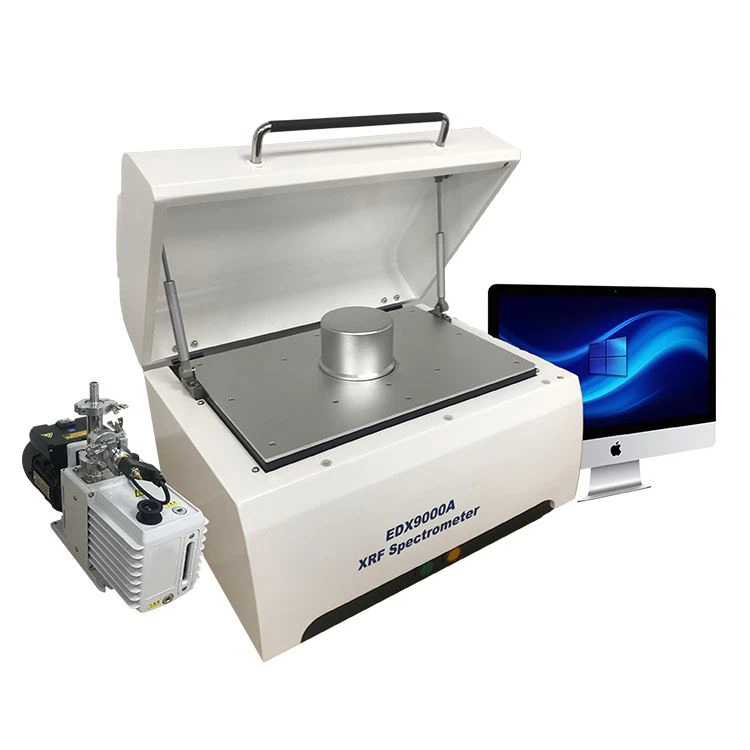

ESi EDX-9000A ເຄື່ອງວິເຄາະໂລຫະ XRF ແບບຕັ້ງໂຕະ

Size of Spectrometer: 560mm*380mm*410mm

Size of sample chamber：460mm*310mm*95mm

Size of Vacuum sample chamber：Φ150mm×75mm

Weight: 45Kg

Element Range：Na11-U92

Analysis content range：1ppm- 99.99%

Detector：AmpTek high resolution SDD

DPP Analyzer: 4096 Channel DPP analyzer

Excitation Source：50W X-ray tube

HV unit：0-50kV

Power supply：220ACV 50/60HZ

Environment：-10 °C - 35 °C

Accessory

>Standard

Ag- Calibration standard

Vacuum pump

Sample cup

USB cable

Power supply cable

Test Mylar

Calibration report

Warranty card

>Optional

Power stabilizer

Alloy standard samples

Typical Applications:

- Minerals and Mining Analysis; instant, on-site ore exploration, mine mapping, excavation, and grade control

- Toxic Soil Screening; environmental soil testing, determination of toxic elements and pollutants

- RoHS Compliance Analysis; determine Cr, Pb, Hg, Br, and Cd

- Home Inspection; lead in paint analysis

- Consumer Goods Analysis; non-destructive screening for Lead (Pb) and other restricted elements

- Treated Wood Screening; identify wood treated with hazardous substances such as CCA in seconds

Features:

- High Speed Analysis (High Sensitivity)

Measurement times can be greatly shortened, typically to one tenth the time of conventional methods, by combining the high count rate detector and precision control software.

- High Count Rate Detector—No LN2 Needed

- Wide Range of Application

Measurement of Na to U element is possible by performing measurements in a vacuum condition . This feature also supports highly sensitive analysis of Cl.
