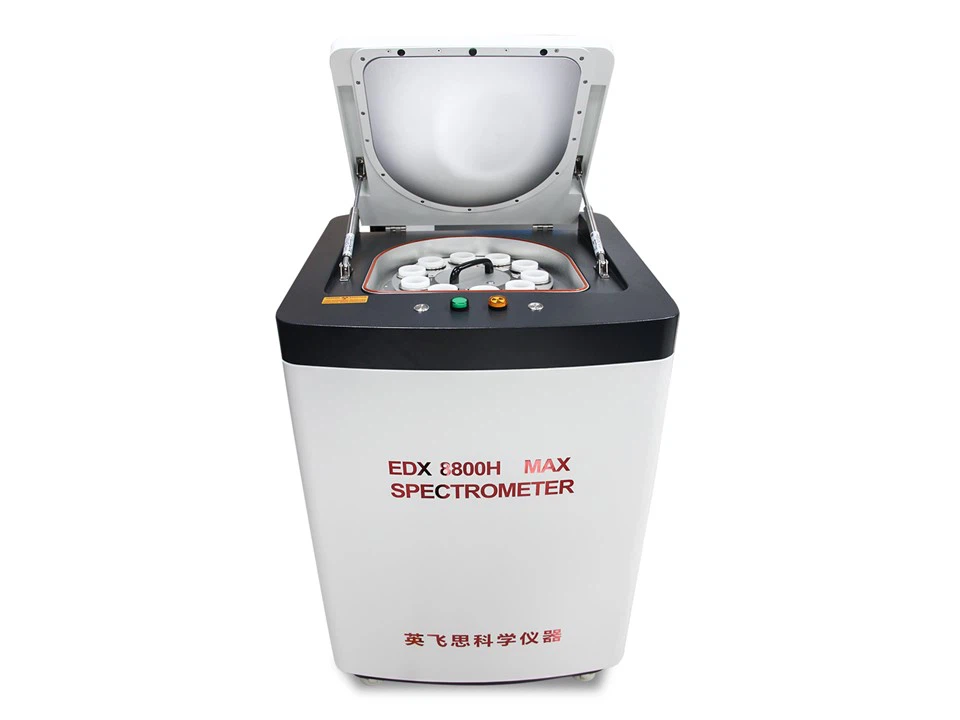

ESi EDX-8800H MAX ເຄື່ອງວັດແທກແສງເອັກສ໌ເຣຟລູອໍເຣສເຊັນສ໌ ລະດັບສູງ
Size: 650mm*600mm*900mm
Weight: 105Kg
Element Range：Na11-U92
Detection Limit：1ppm- 99.99%
Detector：AmpTek High-resolution FSDD
Multi-channel analyzer : 4096 Channel DPP analyzer
X-ray tube：Original imported high power beryllium window light tube
High voltage generator：Maximum voltage output of 100kV, with a voltage overload protection
Power Supply：220ACV 50/60HZ
Temperature：-10 °C to 35 °C
Standard Accessories
> Standard
Ag- Calibration standard
Vacuum pump
Sample cup
USB cable
Power supply cable
Test Mylar
Calibration report
Warranty card
>Optional
Mill machine
Sample pressing machine
Drying oven
Drying oven
Balance
Mineral Standard samples
Power stabilizer
150 - mesh sieve
Applications
ESI EDX8800H MAX spectrometer is mainly used for material element composition analysis at all stages of the mining process. From exploration samples to mineral concentrates, from beneficiation to tailings, the EDX8800H MAX offers excellent flexibility, analytical performance and stability in demanding mining environments.
EDX8800H MAX focuses on qualitative and quantitative analysis of major, trace and trace elements of geological materials, including:
• Iron ore • Copper • Bauxite • Precious metals • rare earth minerals • Raw materials • Phosphate • Coal • Lead zinc • Manganese • Nickel • Limestone • Clay • Gypsum • Glass • Soil • cement • Refractory materials and others
The EDX8800H MAX is easy to operate and has excellent analytical performance, while also extending to the following applications
Plastic and organic matter: plastic materials PE, PVC, additives and other elements analysis
Petrochemical: Analysis of sulfur in fuels, lubricating oil monitoring, additives, wear metals, etc
Environment: wastewater, air pollution, soil and ground, discharge control, etc
Coating thickness and film: Analysis of multilayer coatings, steel coatings, impurities, etc
Criminal Investigation and Public Security: evidence analysis, material matching, explosives, etc
Food, cosmetics and pharmaceuticals: additive control, raw materials, harmful metals, packaging materials, etc
