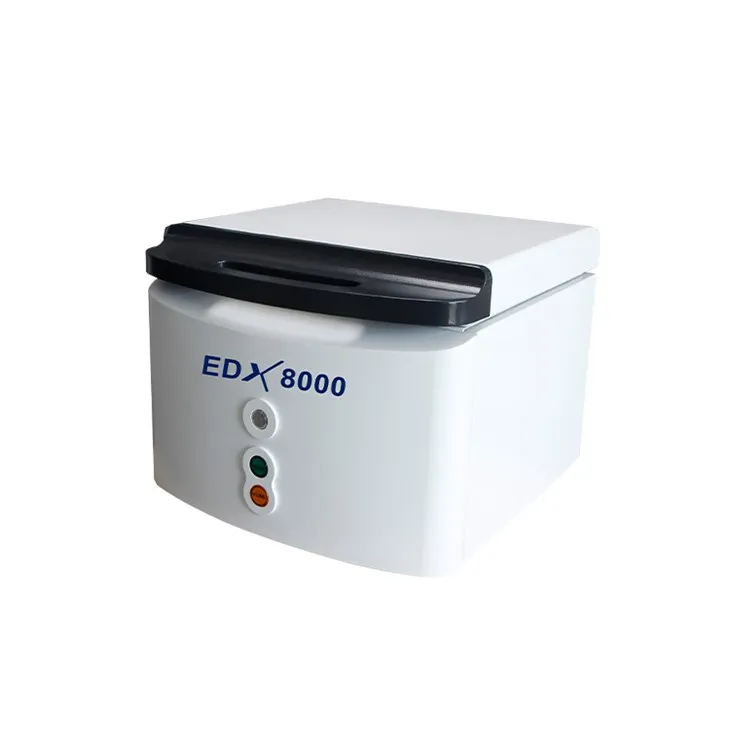

ESi EDX-8000 ເຄື່ອງທົດສອບ XRF ຄຳ

Specifications

- Sample chamber size: 410mm*330mm*140mm

- Instrument Size: 500mm*500mm*390mm

- Detector: High performance SDD(FSDD optional)CPS readout: 30,000-100,000

- Digital Multichannel Analyzer: 4096 channels

- Tube:Powerful 50 Watts air cooling X-ray tube

Maximum voltage: 50Kv.

Maximum current: 1000uA.

- Measure time: 30 seconds for final report. 3 seconds gold karat identification.

- Element Range: From Magnesium to Uranium

- Built-in CCD camera

- Power supply: 220-240 V, 50/60 Hz

Features and Benefits

- Large sample chamber with the best performance Silicon Drift Detector

- Outstanding sensitivity leads to up to a factor 3 improved precision – the basis for high accuracy when analyzing minor to major element concentrations.

- World's fastest XRF analyze–highest accuracy within the shortest measurement time, excellent precision

- High-count throughput detection system result in significantly (typically a factor 3) lower limits of detection for a wide range of elements.

- Easier, faster, more accurate than nitric acid test methods.

- Faster, more comprehensive analysis than fire assay, with comparable accuracy.

- Measure the content of all gold and precious metals without manually changing the calibration.

- Precisely determine the presence and concentration of other trace alloying elements and dangerous heavy elements, which could impact valuation and future refining needs.
