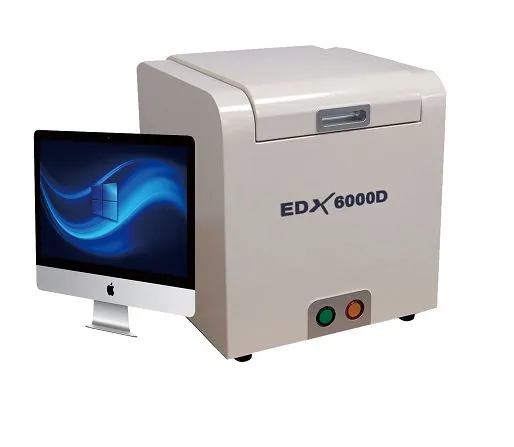

ESi EDX-6000D ເຄື່ອງທົດສອບ XRF ເຄື່ອງທົດສອບຄຳ

The Compact Professional Precious Metals Testing Solution

The ESI Gold Expert offers the best of both worlds. A handsome analyzer fit for the consumer showroom environment, it can also be networked for high productivity QA/QC jobs. The ESI Gold Expert can be transported easily to any location where testing is needed.

● Operates completely independent of a PC

● Integrated camera indicating sample analysis points

● Safe, closed-beam XRF system

● Small spot collimation for analysis; ability to switch between 0.5mm,1mm and 3 mm diameter spots

● 50 W X-ray tube, 1000 µA current (max), plus optimized beam settings for accurate analysis

● Responsive, bright, color touch screen display

● Silicon PIN Detector system standard. Silicon Drift Detector system available for optimized precision on trace elements. Fast Silicon Drift Detector available for most restricted test requirement.

Typical Applications

● Gold Karat Identification

● Coating thickness measurement

● Alloy analysis and Alloy PMI

● Hazardous metals Inspection: Hg, Cd, Cr, Pb

● Electroplate liquid analysis
