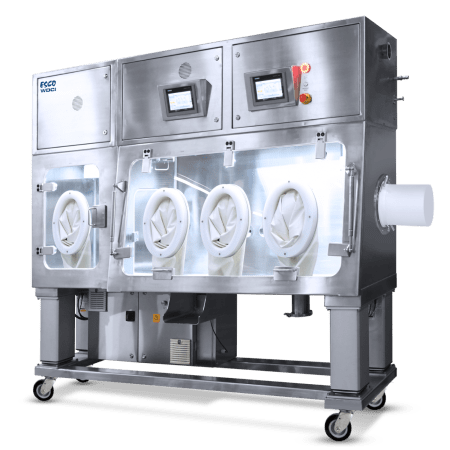

ESCO WDCI - 4G ເຄື່ອງແຍກການບັນຈຸນໍ້າໜັກ ແລະ ການແຈກຈ່າຍ (2.0m)
Nominal Size Process Chamber: 2.0 m
External Dimensions (W x D x H):
Without Base Stand: 2.4 x 0.65 x 1.73 m
With Adjustable Base Stand (Min): 2.4 x 0.65 x 2.08 m
With Adjustable Base Stand (Max): 2.4 x 0.65 x 2.36 m
Glove Port Height Min: 950 mm
Glove Port Height Max: 1300 mm
Chamber Pressure: Negative Pressure
Airflow Type: Turbulent Flow
Airflow Volume - Maximum (Intake & Exhaust) - Normal Operation: 21 m3/h
Airflow Volume - Maximum (Intake & Exhaust) - Glove Breach Protection: 75 m3/h
Filter Type - Inlet: H14 Cartridge Filter with PVC Shroud
Filter Efficiency - Inlet - Safe Change: 99.999%
Filter Efficiency - Exhaust - Safe Change: H14 Push Push Filter with SS 316L Housing
Lighting Level: ≥ 650 lux (≥ 60 foot-candles)
Sound Level: ≤ 68 dBA
Isolator Construction:
Chamber: 316L
Service Housing: 316L
Support Frame: 316L
Anti-vibration weighing mount: Black Granite for Analytical Weigh Scale ✔
Isolator Finish:
Chamber Internal: ≤ 0.4 Ra
Chamber External: ≤ 0.6 Ra
Service Housing External: 0.6 Ra
Support Frame: 1.0 Ra
Controls:
Color 6” HMI - Siemens - CE Marked ✔
Operator Specific Login sets Isolator Working Height for Ergonomic Comfort (Selectable) ✔
Electrical Requirements (By Client):
220-240 V, AC, 50 Hz/60 Hz, 1Ø ✔
480 V, AC, 50 Hz/60 Hz, 3Ø ✔
Compressed Air Requirements (By Client): 6 Barg Pressure at 5Itr/sec ✔
Exhaust Duct Requirements (By Client) - Thimble Connection Required: 101.6 mm
