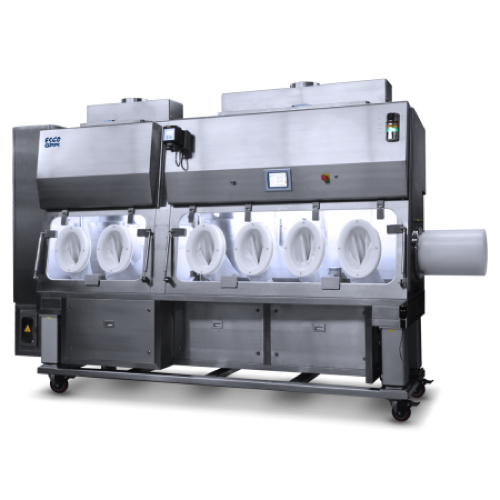

ESCO GPPI-4G ການແຍກແພລະຕະຟອມການປຸງແຕ່ງທົ່ວໄປ (2000 x 540 x 700 mm)
Nominal Size Main Chamber (Width): 2000 mm
External Dimensions (W x D x H):
Process Chamber: 2304 x 881 x 2430 mm
Pass Chamber: 710 x 772 x 2430 mm
Internal Dimensions (W x D x H):
Process Chamber: 2000 x 540 x 700 mm
Pass Chamber: 606 x 458 x 790 mm (23.86" x 18.03" x 31.10")
Glove Port Height: 1150 mm (45.3")
Chamber Environment: ISO Class 5 (Grade A)
Filtration:
Prefilter: M6 pre filter with ≥ 60% as per EN 779:2012
Chamber Supply:
Filter Type: ULPA (U15) with Knife Edge Gel Seal
Filter Efficiency: 99.9995% at Most Penetrating Particle Size (MPPS) as per EN1822:2009
Chamber Exhaust:
Filter Type: HEPA (H14) with Gasket Seal and Integral Mesh Guard
Filter Efficiency: 99.995% at Most Penetrating Particle Size (MPPS) as per EN1822:2009
Lighting Level: ≥ 600 Lux
Sound Level: ≤75 dBA
Isolator Finish:
Internal Chamber: ≤ 0.4 Ra
External Chamber: ≤ 0.6 Ra
ExternalService Housing: ≤ 0.6 Ra
Electrical Requirements:
220-240V, AC, 50Hz, 1Ø ✓
220-240V, AC, 60Hz, 1Ø ✓
Compressed Air Requirement (By Client) (If no mobile compressor): Min 6 Bar - Max 12 Bar, ≥ 200L/min ✓
Exhaust Duct Requirements (By Client) (Unless Integral Catalytic Converter is Included): 10” Duct from Isolator to outside
