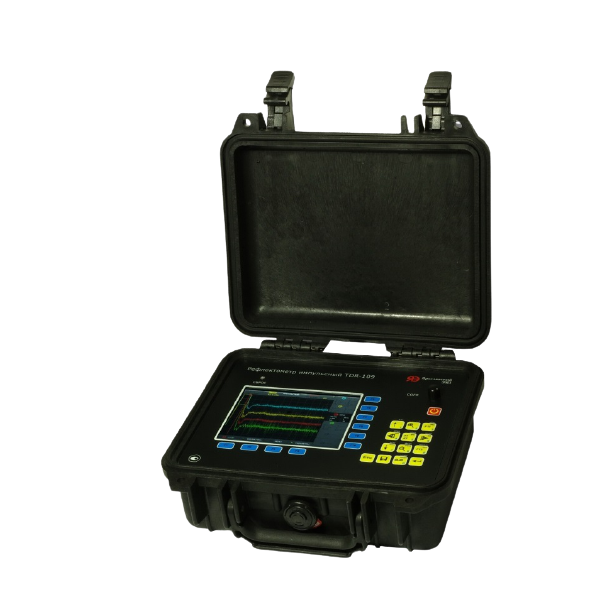

Ersted TDR-109 ຕົວຕັ້ງຄວາມຜິດຂອງສາຍເຄເບີ້ນ
Specifications:
- Measurement modes: Time Domain Reflectometry (TDR)
Arc Reflection Method (ARM)
Impulse Current Method (ICM)
Voltage Decay Method (Decay)
- Monochrome LCD display: Color TFT 5.7" (640x480 pixels)
- Range measuring distance (delay time): from 0 to 128000m (0 to 1280μs)
- Distance instrumental error: from 0.01% to 0.2% of subband (from 12.5cm to 8m at VOP = 60%)
- The effective sampling rate: 800MHz
- Range concerted resistance from: 20Ω to 600Ω
- Probe pulse duration: from 10ns to 100μs
- The amplitude of the probe pulse: U1 - not less than 18V
U2 - not less than 86V
- Sensitivity: better than 1mV
- The dynamic range: not less 80dB
- The setting range of the velocity factor: VOP = 33.3% ... 99.9% (step 0.01%)
- Time delay adjustment range (ARM): from 0 to 50ms (step 0.2ms)
- Synchronization (ARM): TDR input
TRIG input
- Memory: Waveform Library up to 1000 waveforms
Cables Library up to 300 cables
- Continuous battery operating time: at least 8 hours
- Time of continuous operating time through the charger: unlimited
- Dimensions: 70x246x124mm
- Operating temperature range: from -20°C to +40°C
- Weight with a battery: not more than 2.5kg
Delivery contents:
- Cable Fault Locator TDR-109: x1
- AC Adapter 12V: x1
- Connecting cable 75 Ohm, 1.0 m, BNC.M - «Alligator clip»: x1
- Connecting cable 75 Ohm, 0.5 m, BNC.M-BNC.M: x5
- User Manual: x1
- CD-ROM with software: x1
- Accessories bag: x1
