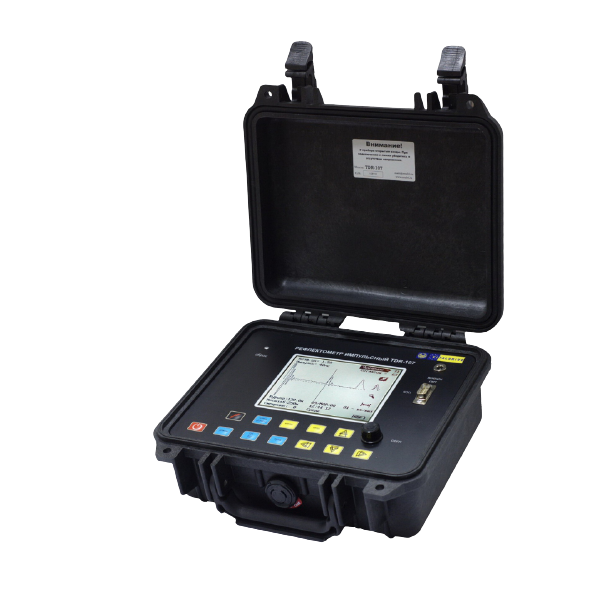

Ersted TDR-107 ຕົວຕັ້ງຄວາມຜິດຂອງສາຍເຄເບີ້ນ
Specifications:
- Measurement modes: TDR
ARM
- Monochrome LCD display: 5.7" (320×240 pixels)
- Range measuring distance (delay time): from 0 to 50000m (0 to 500ms)
- Sub-bands of distance: 0 – 250m, 500m, 1000m, 2500m, 5000m, 12500m, 25000m, 50000m
- Distance instrumental error: from 0.04% to 0.4% depending on subband measurements
- The effective sampling rate: 100MHz
- Range concerted resistance: from 25Ω to 600Ω
- Probe pulse duration: from 10ns to 100µs
- The amplitude of the probe pulse: 20V on open circuit
- Sensitivity: better than 1mV
- The dynamic range: not less 80dB
- The setting range of the velocity factor: VOP=33.3% ... 99.9% (step 0.1%)
- Time delay adjustment range (ARM): from 0 to 4ms (step 0.2ms)
- Synchronization (ARM): TDR input
SYNC input
- Memory: 100 waveforms
- Continuous battery operating time: at least 8 hours
- Time of continuous operating time through the charger: unlimited
- Dimensions: 70x246x124mm
- Operating temperature range: from -20°C to +40°C
- Weight with a battery: not more than 2.5kg
Delivery contents:
- Cable Fault Locator TDR-107 (Tech specs 4221-108-23133821-11): x1
- AC Adapter 12V: x1
- Connecting cable 75 Ohm, BNC.M - «Alligator clip»: x1
- Connecting cable 75 Ohm, 1 m, BNC.M-BNC.M: x1
- User Manual (tech. spec. 4221-108-23133821-11): x1
- CD-ROM with software: x1
- Accessories bag: x1
